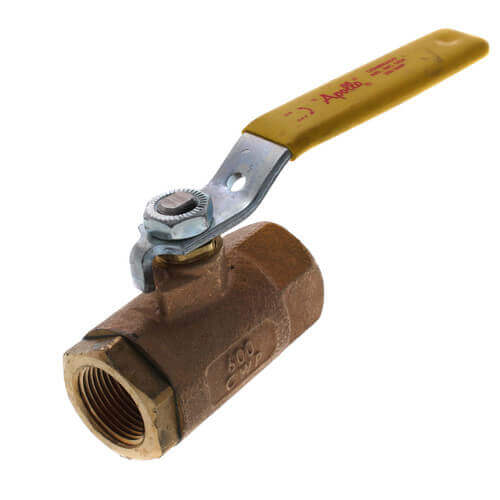

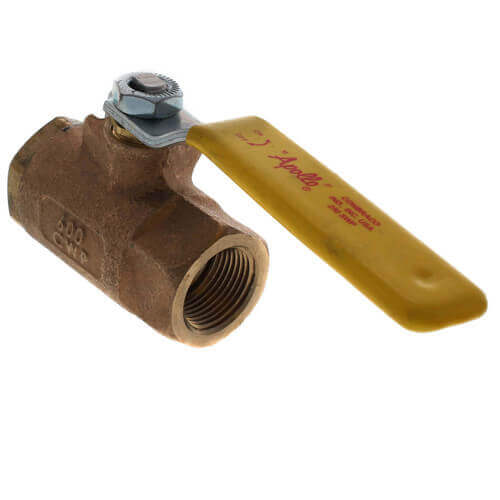

Conbraco 7014664 3/4 in FNPT Bronze Ball Valve Inline

Product Description

The Conbraco 7014664 is a durable inline ball valve designed specifically for high-pressure steam systems. This valve features a two-piece bronze body with reinforced seats and is compliant with MSS SP-110 standards. With a blowout-proof stem design, it ensures reliability and safety in various applications.

• Standard port design for smooth flow
• Temperature range from minus twenty to four hundred fifty degrees Fahrenheit
• Maximum pressure rating of six hundred psi for CWP

Product Highlights

The Conbraco bronze ball valve is ideal for plumbing systems handling steam and other high-temperature fluids. It features stainless steel ball and stem for added durability.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 7014664

Technical Specifications

• Body Material: Bronze B584
• Ball Material: 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Connection Type: FNPT x FNPT
• Valve Size: 1-1/4 NPT
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Weight: 3.20 lbs
