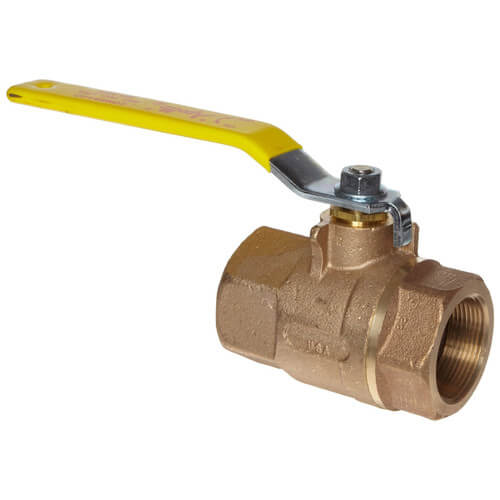

Conbraco 7014164 3/4 in FNPT Bronze Ball Valve Inline 250 psig WSP

Product Description

The Conbraco 7014164 is a durable 3/4 inch FNPT bronze ball valve. This inline valve is designed for various fluid handling needs. It features a two-piece bronze body and reinforced seats for reliable operation. The blowout-proof stem design enhances safety. It supports a maximum pressure of six hundred psi and a steam service rating of two hundred fifty psi.

• Two-piece bronze body
• Blowout-proof stem design
• Female NPT thread connection

Product Highlights

This ball valve works efficiently in high-pressure steam systems. The stainless steel ball and stem ensure long-lasting performance.

Product Information

Standard Information

• Brand: Conbraco
• Part Number: 7014164

Technical Specifications

• Weight: 0.59 lbs
• Pipe Size: 1/4 in
• Stem Type: Blowout Proof
• Body Style: Inline
• Connection: Threaded
• Valve Size: 1/4 NPT
• Handle Type: Lever
• Body Material: Bronze B584
• Ball Material: 316 Stainless Steel
• Seat Material: MPTFE
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Flow Coefficient (Cv): 8.4 Cv
