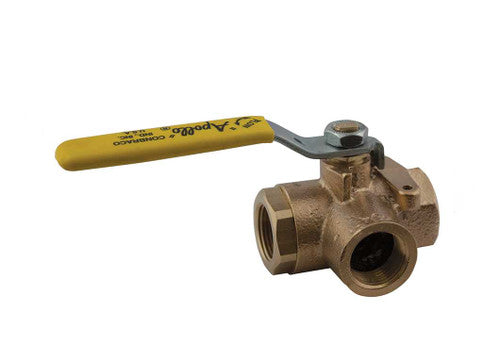

Conbraco 70-607-01 bronze 3-way standard ball valve 1-1/2 in

Brand: CONBRACO
SKU: 70-607-01
Availability: In Stock

Ships same day if ordered by 12 pm
$178.46
$178.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 70-607-01 is a 2-Piece Series 70-600 standard port 3-way diversion ball valve ideal for tank selection and fluid transfers. It features a bronze body, brass stem and chrome plated brass ball. Designed with reinforced RPTFE seats and a PTFE seal, this valve ensures reliable performance. It has a 1-1/2 IN nominal size and a 400 PSI pressure rating.

  • Bronze body and brass stem material
  • Temperature rating of 0 - 500 DEG F
  • Lever handle operator type

Product Highlights

This 3-way ball valve is suitable for applications requiring flow diversion, combining the features of two 2-way valves for simpler tank selection and fluid transfers.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 70-607-01
  • Country of Origin: United States
Technical Specifications
Series/Model
Series 70-600
Nominal Size
1-1/2 IN
Connection Type
FNPT x FNPT x FNPT
Ports/Ways
3-Way
Pressure Rating
400 psig
Temperature Rating
0 - 500 DEG F
Opening
1-1/4 IN
Body Material
Bronze
Operator Type
Lever Handle
Handle Material
Zinc Plated Steel with Vinyl Grip
Stem Material
Brass
Trim Material
Brass Ball
Seat Material
RPTFE
Seal Material
PTFE
Material Standard (Body)
ASTM B584
Material Standard (Ball And Stem)
ASTM B16
Material Specification (Body)
UNS C84400
Finish/Color (Handle)
Zinc Plated
Finish/Color (Ball)
Chrome Plated
Industry Standards
MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
Width
4.4 IN
Flow Coefficient (Cv)
34 Cv
Pipe Size
1-1/2 in
Stem Type
Blowout Proof
Body Style
3-Way
Connection
Threaded
Valve Size
1-1/2 NPT
Handle Type
Lever
Handle Style
Lever
Ball Material
Brass
Porting Style
Standard Port
Standards Met
MSS-SP-110
Overall Length
8.77 in
Valve Structure
2-Piece
Maximum Pressure
400 psi CWP
Temperature Range
-20 to 450 °F
Body Seal Material
PTFE
Stem Seal Material
MPTFE
Valve Body Material
Bronze
Media Pressure Rating
Cold Water - 400 psi
Compliance Specifications
ISO 9001
Flow Coefficient (Cv) / Flow Factor (Kv)
34 Cv
Item
Three Way Ball Valve
Port
Full
Max. Pressure
400 PSI CWP
Stem Packing
RPTFE
Stem Bearing
RPTFE
Material Standard
ASTM B584-C84400, ASTM B16
Media
Gas, Water
Number of Ports/Ways
3-Ways
Orifice Size
1-1/4 in
Packing Material
RPTFE
Port Type
Standard
Series
70-600 Series
Top to Inlet Center
2.87 in
Actuator Type
Lever
Configuration
Standard
Domestic/Import
Domestic
Inlet to Outlet Length
4.4 in
Port Threads
1-1/2" Pipe
Max. PSI
400
