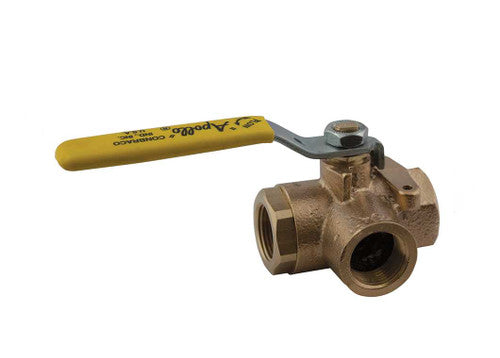

Conbraco 70-605-01 1 Brz 3-Way Std Ball Valve 1 IN

Product Description

The CONBRACO 70-605-01 is a 2-Piece Standard Ball Valve from the Series 70-600 with a 1 IN nominal size and FNPT connection. This 3-way valve is suitable for tank selection and fluid transfers. It features a bronze body, a lever handle, and RPTFE seats. The valve has a pressure rating of 400 PSI (CWP) and a temperature rating of 0 - 500 DEG F.

• Bronze body material
• Lever handle operator type
• 3-Way valve

Product Highlights

This standard port 3-way diversion valve is ideal for making tank selection and fluid transfers simpler.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-605-01
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-600
• Nominal Size: 1 IN
• Connection Type: FNPT x FNPT x FNPT
• Ports/Ways: 3-Way
• Pressure Rating: 400 PSI (CWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 3.2 IN
• Lead Free: No
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Flow Co-Efficient (Cv): 14 Cv
• Pipe Size: 1 in
• Stem Type: Blowout Proof
• Body Style: 3-Way
• Connection: Threaded
• Valve Size: 1 NPT
• Handle Type: Lever
• Handle Style: Lever
• Ball Material: Chrome Plated Brass
• Porting Style: Standard Port
• Standards Met: MSS-SP-110
• Overall Length: 7.63 in
• Valve Structure: 2-Piece
• Maximum Pressure: 400 psi CWP
• Temperature Range: -20 to 450 °F
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 400 psi
• Compliance Specifications: ISO 9001
• Flow Coefficient (Cv): 14 Cv
• Item: Three Way Ball Valve
• Port: Full
• Size: 1"
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: MPTFE/PTFE
• Actuator Type: Lever Operated
• Inlet to Outlet Length: 3.2 in
• Manufacturer Name: Apollo Conbraco
• Media: Gas/Water
• Orifice Size: 0.87 in
• Series: 70-600
• Top to Inlet Center: 2.2 in
• Type: 3-Way
• Includes: Adjustable Packing Gland
• Application: Ideal For Making Tank Selection And Fluid Transfers Simpler
• Warranty: 5 Years
• Domestic/Import: Domestic
• Number of Ports/Ways: 3
• Packing Material: RPTFE
• Configuration: Standard
• Lead-Free/Contains Lead: Contains Lead
