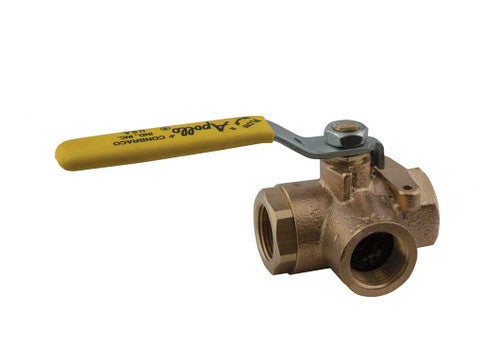

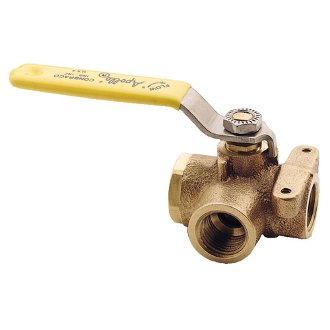

Conbraco 70-603-01 1/2 Brz 3-Way Std Ball Valve

Product Description

The CONBRACO 70-603-01 is a 2-Piece Standard Ball Valve from the Series 70-600. This valve features a 1/2 IN nominal size and FNPT connection type with 3-way ports. It is designed with a bronze body material and a lever handle operator. The valve is suitable for applications requiring flow diversion, combining the functionality of two 2-way valves into one.

• Nominal Size: 1/2 IN
• Pressure Rating: 400 PSI (CWP)
• Temperature Rating: 0 - 500 DEG F

Product Highlights

This bronze ball valve offers versatile flow control with a durable construction and easy quarter-turn operation. Ideal for fluid management with simplified tank selection.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-603-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-600
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Ports/Ways: 3-Way
• Pressure Rating: 400 PSI (CWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 2-3/4 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1-3/4 IN
• Handle Length: 3.87 IN
• Flow Co-Efficient (Cv): 5.4
• Pipe Size: 1/2 in
• Stem Type: Blowout Proof
• Body Style: 3-Way
• Connection: Threaded
• Valve Size: 1/2 NPT
• Handle Type: Lever
• Handle Style: Lever
• Ball Material: Chrome Plated Brass
• Porting Style: Standard Port
• Standards Met: MSS-SP-110
• Overall Length: 5.92 in
• Valve Structure: 2-Piece
• Maximum Pressure: 400 psi CWP
• Temperature Range: -20 to 450 °F
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 400 psi
• Compliance Specifications: ISO 9001
• Flow Coefficient (Cv) / Flow Factor (Kv): 5.4 Cv
• Exterior Finish: Bronze
• Inlet Connection Type: threaded
• Outlet Connection Type: threaded
• Maximum Operating Pressure: 400 Pound per Square Inch
• Number of Ports: 3
• Manufacturer: Apollo
• Brand: Conbraco
• MPN: 70-603-01
• UPC: 670750673375
