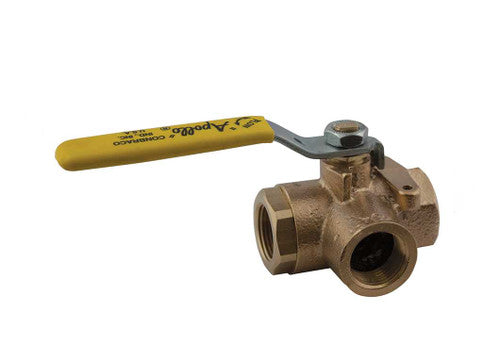

Conbraco 70-601-01 1/4 Brz 3-Way Std Ball Valve

Product Description

The CONBRACO 70-601-01 is a 2-Piece Standard Ball Valve from the Series 70-600 with a 1/4 IN nominal size. This valve features FNPT connection type and 3-way ports. It has a pressure rating of 400 PSI (CWP) and a temperature rating of 0 - 500 DEG F.

• 2-Piece Standard Ball Valve
• 3-Way
• Lever Handle

Product Highlights

This bronze body ball valve has a steel lever handle with vinyl grip and a brass stem. The trim material is brass ball and the seat material is RPTFE.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-601-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-600
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Ports/Ways: 3-Way
• Pressure Rating: 400 PSI (CWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Standard: ASTM B584
• Ball And Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Handle Finish/Color: Zinc Plated
• Ball Finish: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 2-1/4 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1.8 IN
• Handle Length: 3.88 IN
• Flow Co-Efficient (Cv): 2.3
• Stem Type: Blowout Proof
• Body Style: 3-Way
• Valve Size: 1/4 NPT
• Handle Type: Lever
• Porting Style: Standard Port
• Standards Met: MSS-SP-110
• Overall Length: 5.92 in
• Valve Structure: 2-Piece
• Maximum Pressure: 400 psi CWP
• Temperature Range: -20 to 500 °F
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 400 psi
• Flow Coefficient (Cv) / Flow Factor (Kv): 2.3 Cv
• Port: Full
• Size: 1/4"
• Stem Packing: RPTFE
• Stem Bearing: RPTFE
• Number of Ports/Ways: 3-Ways
• Orifice Size: 1/2 in
• Packing Material: RPTFE
• Port Type: Standard
• Actuator Type: Lever
• Domestic/Import: Domestic
• Material Standard: ASTM B584-C84400, ASTM B16
• Media: Gas, Water
• Configuration: Standard
• Top to Inlet Center: 1.8 in
• Apollo Number: 70-601-01
• Port Threads: 1/4" Pipe
• Ball Material: Chrome Plated Brass
