Conbraco 70-207-01 1-1/2 Brz Sweat Std Ball Valve

Product Description

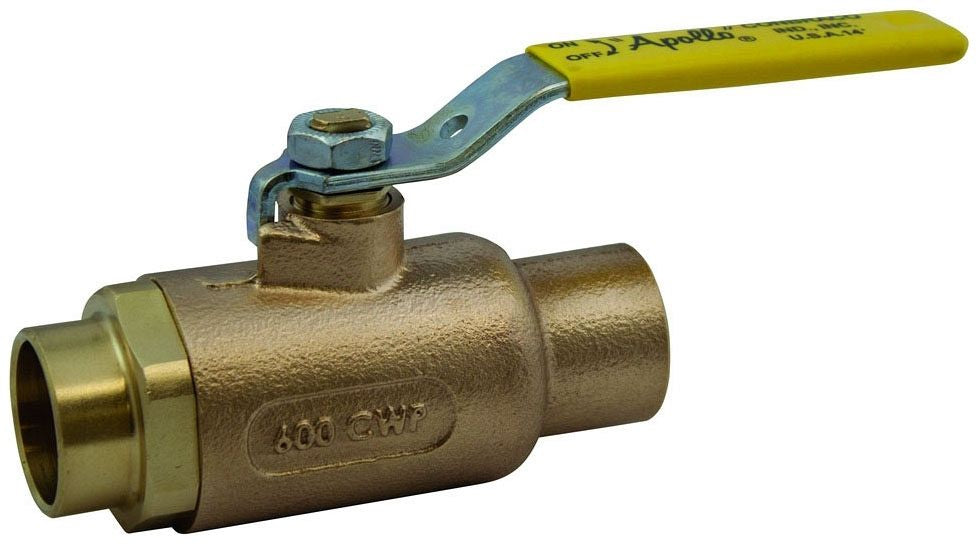

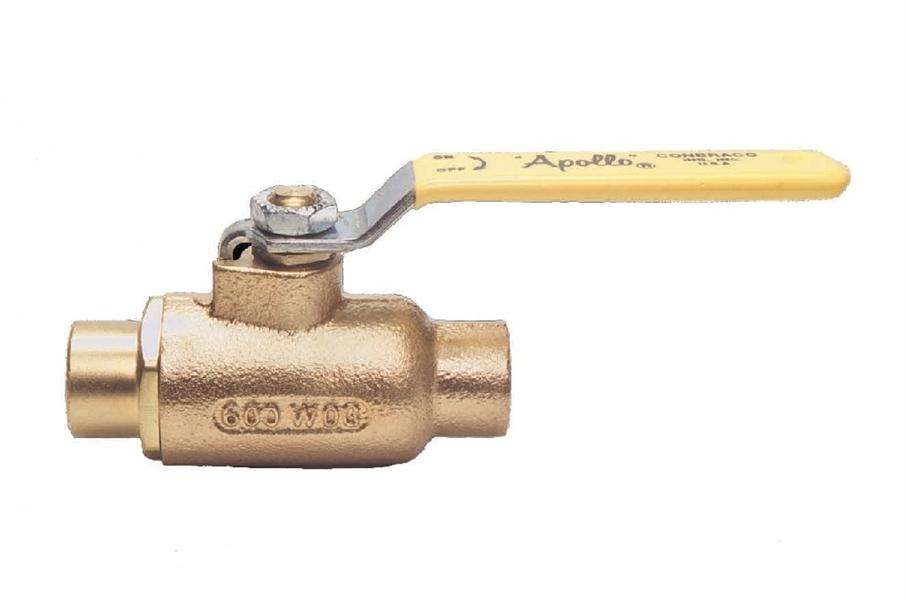

The CONBRACO 70-207-01 is a 2-piece in-line standard ball valve. It features a bronze body, a lever handle, and a solder connection type. Designed for durability, this valve is suitable for various applications with a pressure rating of 600 PSI (CWP) and a temperature range of -20 to 500 DEG F.

• 2-Piece In-Line Standard Ball Valve
• Solder Connection
• Bronze Body Material

Product Highlights

This ball valve offers reliable performance with its robust construction and industry standard compliance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-207-01

Technical Specifications

• Series/Model: Series 70-200
• Nominal Size: 1-1/2 IN
• Connection Type: Sweat x Sweat
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 500 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Vinyl/Zinc-Plated Steel
• Stem Material: Brass
• Trim Material: C37700 Forged Brass/Zinc-Plated Steel
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 5-1/4 IN
• Lead Free: No
• Other Physical Dimension: 3.06 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Flow Co-Efficient (Cv): 84
• Stem Type: Blowout Proof
• Body Style: Inline
• Handle Type: Lever
• Handle Style: Lever
• Ball Material: Chrome Plated Bronze
• Porting Style: Standard Port
• Standards Met: MSS SP-110, ASTM B16
• Overall Length: 5.25 in
• Valve Structure: 2-Piece
• Maximum Pressure: 600 psi CWP
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Steam Pressure: 150 PSI WSP
• Compliance Specifications: MSS SP-110
• Flow Coefficient (Cv) / Flow Factor (Kv): 84 Cv
• Actuator Type: Lever
• Domestic/Import: Domestic
• Inlet to Outlet Length: 5-1/4 in
• Material Standard: ASTM B16, ASTM B283, ASTM B584
• Opening Size: 1.63 in
• Port Type: Standard
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 3.06 in
• CWP: 600
• Material: Bronze
• Pieces: 2
• Type: Sweat
