Conbraco 70-146-64 1-1/4 Brz Std Port Ball Valve

Product Description

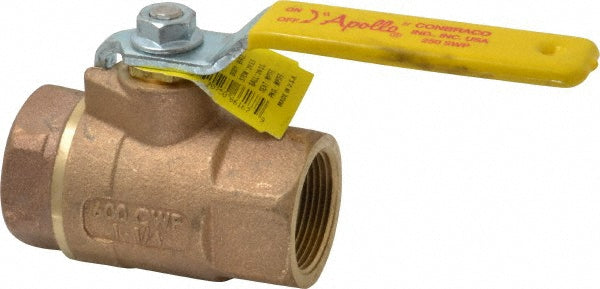

The CONBRACO 70-146-64 is a 2-Piece Standard Port In-Line Ball Valve with a 1-1/4 IN nominal size and FNPT connection. It features a bronze body, a lever handle, and a 316 stainless steel stem and trim. The valve is pressure rated to 600 PSI (CWP) and 250 PSI (SWP).

• 2-Piece Standard Port In-Line Ball Valve
• Lever Handle
• 316 Stainless Steel Ball & Stem

Product Highlights

This ball valve features reinforced seats, a blowout-proof stem design, and an adjustable packing gland. It is MSS-SP-110 compliant.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-146-64
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-140
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 250 PSI (SWP)
• Temperature Rating: -20 To 500 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Seat Material: Reinforced Polytetrafluroethylene
• Seal Material: Polytetrafluroethylene
• Material Standard - Body: ASTM B584
• Material Standard - Ball And Stem: ASTM B16
• Material Specification - Body: UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant
• Width: 4 IN
• Lead Free: No
• Other Physical Dimension: 2.62 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 48
• Pipe Size: 1-1/4 in
• Stem Type: Blowout Proof
• Body Style: Inline
• Connection: Threaded
• Valve Size: 1-1/4 NPT
• Handle Style: Lever
• Ball Material: 316 Stainless Steel
• Porting Style: Standard Port
• Standards Met: MSS SP-110
• Overall Length: 4.0 in
• Valve Structure: 2-Piece
• Maximum Pressure: 600 psi CWP
• Temperature Range: -20 to 450 °F
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Steam - 250 psi
• Maximum Steam Pressure: 250 psi WSP
• Compliance Specifications: ISO 9001
• Flow Coefficient (Cv) / Flow Factor (Kv): 48 Cv
• Actuator Type: Lever Operated
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 4 in
• Port Type: Standard
• Series: 70-140
• Softgoods Material: PTFE/MPTFE
• Top to Inlet Center: 2.62 in
• Type: 2-Piece
• Valve Type: Ball; Steam Service
• End Connection: FNPT x FNPT
• Steam Pressure Rating (psi): 250
• Material Grade: 316
• Number Of Pieces: 2
