Conbraco 70-142-01 3/8 Brz Std Ball Valve

Product Description

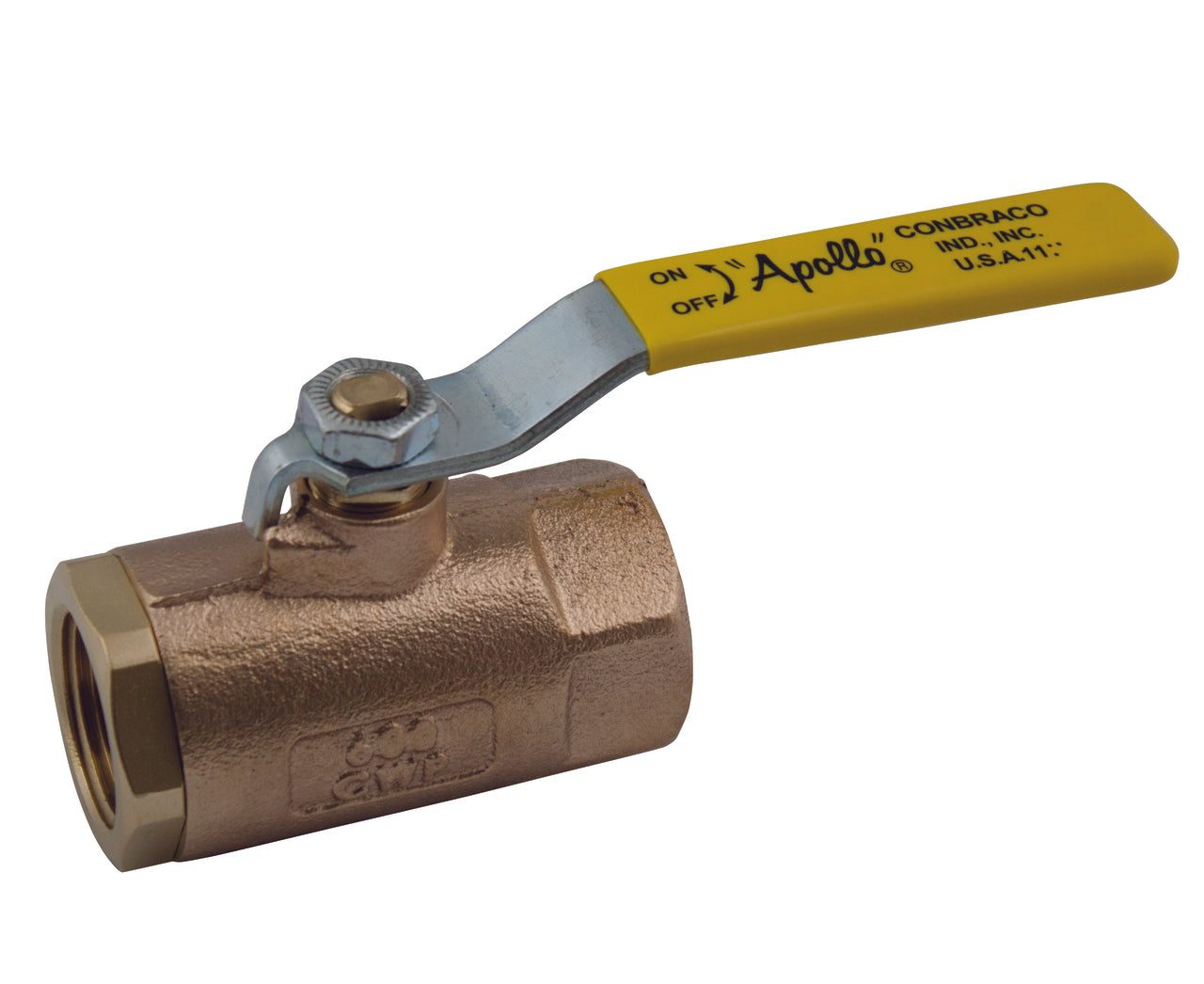

The CONBRACO 70-142-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70-140. This valve features a 3/8 IN nominal size and FNPT connection type. Constructed with a bronze body, it offers a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). Suitable for various applications with a temperature rating of -20 To 500 DEG F.

• Features a bronze body and 316 stainless steel stem and trim.
• Equipped with a lever handle for manual operation.
• Compliant with MSS-SP-110 industry standards.

Product Highlights

The CONBRACO 70-142-01 ball valve is designed for reliable performance in diverse applications, offering robust construction and industry standard compliance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-142-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70-140
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 500 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Seat Material: MPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Flow Co-Efficient (Cv): 7.2
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: 316 Stainless Steel
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: PTFE
• Type: 2-Piece
• Size: 3/8 in
• Material: Bronze
• Series: 70-140
• Inlet to Outlet Length: 2.06 in
• Top to Inlet Center: 1-3/4 in
