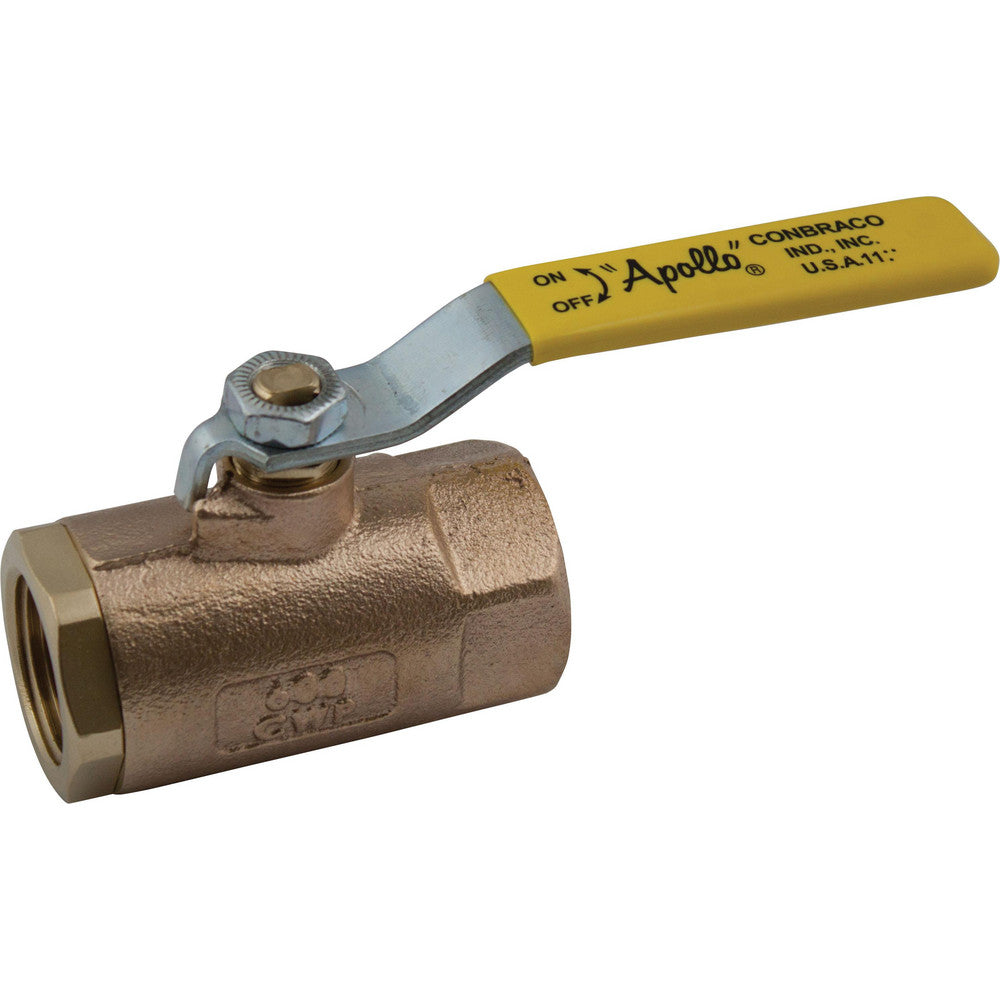

Conbraco 70-109-27A 2-1/2 Brz Std Port Ball Valve

Product Description

The CONBRACO 70-109-27A is a 2-Piece Standard Port In-Line Ball Valve. This valve features FNPT connection, a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). It is designed with a bronze body, stainless steel handle, and a brass stem. Suitable for gas and water media with a temperature rating of -20 to 450 DEG F.

• 2-Piece Standard Port In-Line Ball Valve
• FNPT Connection
• Latch-Lock Lever Handle Operator

Product Highlights

The CONBRACO 70-109-27A ball valve is made with premium materials and heavy-duty construction, ensuring trusted performance for general purpose use.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-109-27A
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 2-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening Size: 2 IN
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: Reinforced Polytetrafluroethylene
• Seal Material: PTFE
• Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16
• Material Specification: Body: UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 6-1/4 IN
• Lead Free: No
• Flow Coefficient (Cv): 190
• Actuator Type: Latch-Lock Lever
• Media: Gas, Water
• Orifice Size: 2 in
• Port Type: Standard
• Inlet to Outlet Length: 6-1/4 in
• Top to Inlet Center: 3.72 in
• Ball Material: Brass
• Domestic/Import: Domestic
• Valve Type: Ball; Standard
• Pipe Size: 2-1/2
• Valve Structure: 2-Piece
• End Connection: NPT
• Handle Type: Locking Lever
• Steam Pressure Rating (psi): 150
• Softgoods Material: RPTFE/MPTFE
