Conbraco 70-108-27 Ball Valve 2 IN

Product Description

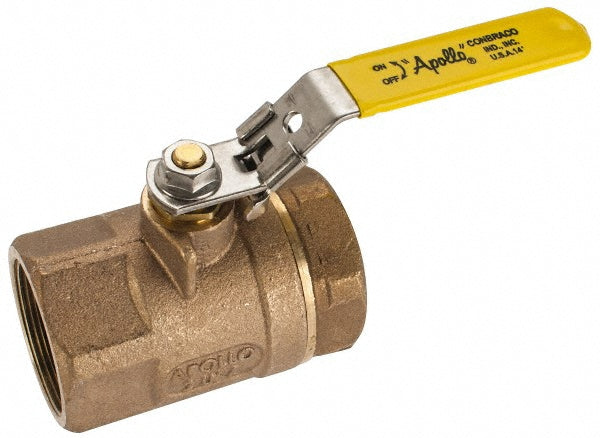

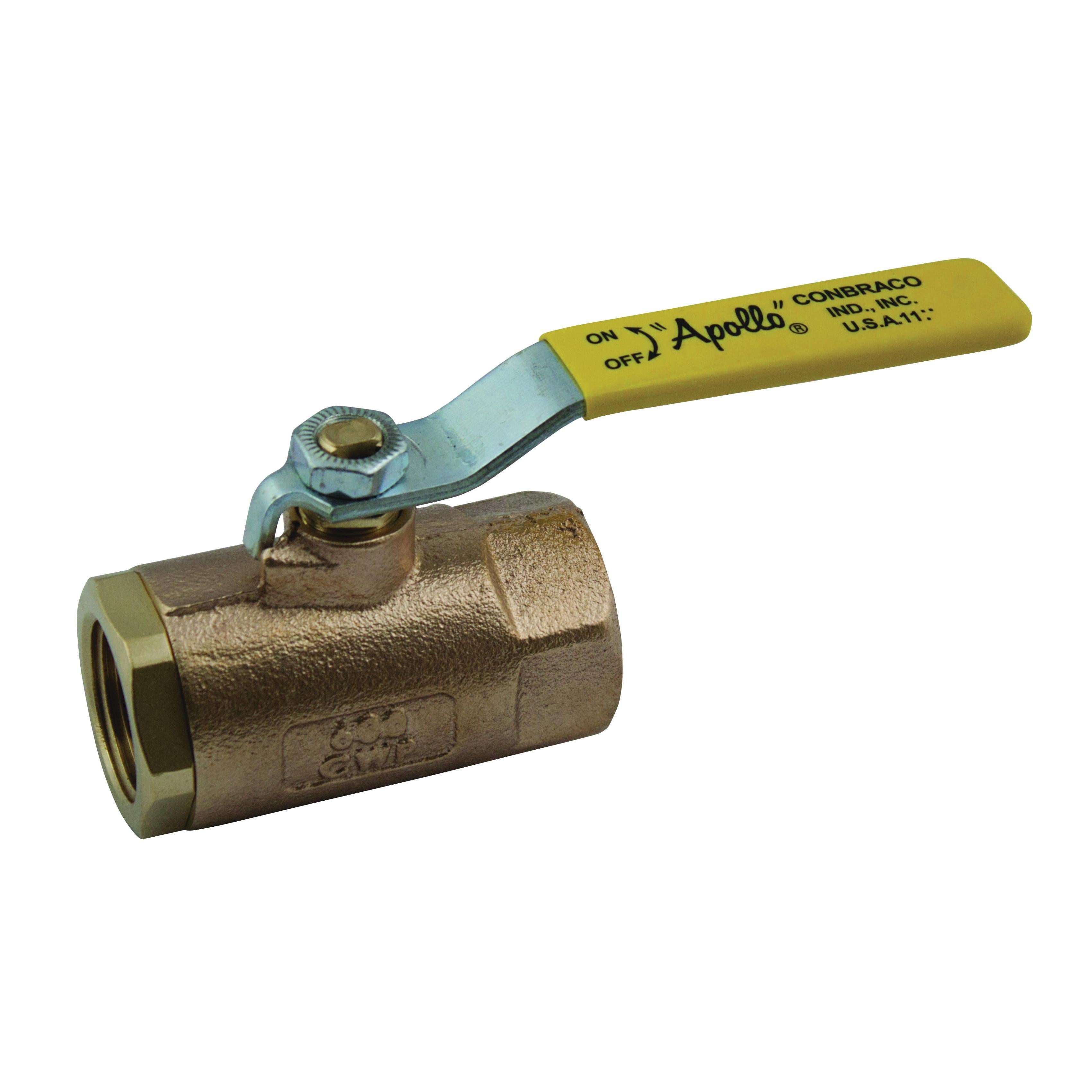

The CONBRACO 70-108-27 is a 2-piece standard port in-line ball valve with female NPT connections. It features a latch-lock lever handle for secure operation. Constructed with a bronze body and brass stem, this valve is designed for durability and reliable performance in various applications. Suitable for pressure ratings up to 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Standard Port In-Line Ball Valve
• Latch-Lock Lever Handle
• Bronze body material

Product Highlights

Durable bronze ball valve with latch-lock lever handle, suitable for industrial and commercial applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-108-27
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 500 deg F
• Opening Size: 1-1/2 in
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Steel
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4.68 IN
• Lead Free: No
• Other Physical Dimension: 3-1/4 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Flow Co-Efficient (Cv): 108
• Port Size: 2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Port Type: Standard
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 4.68 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Actuator Type: Latch-Lock Lever
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2-1/4 in
• Orifice Size: 1-1/2 in
• Type: 2-Piece
• Series: 70-100 Series
• Top to Inlet Center: 3-1/4 in
• Valve Type: Ball; Standard
• Pipe Size: 2
• Valve Structure: 2-Piece
• End Connection: NPT
• Steam Pressure Rating (psi): 150
• Maximum Working Temperature (F): 500
• UNSPSC Code: 40141607
• CWP: 600
• Material: Bronze
• Pieces: 2
• Size: 2 in
• Threaded: Threaded
