Conbraco 70-107-41 Brz Std Port Ball Valve W/Auto Drain 1-1/2 IN

Product Description

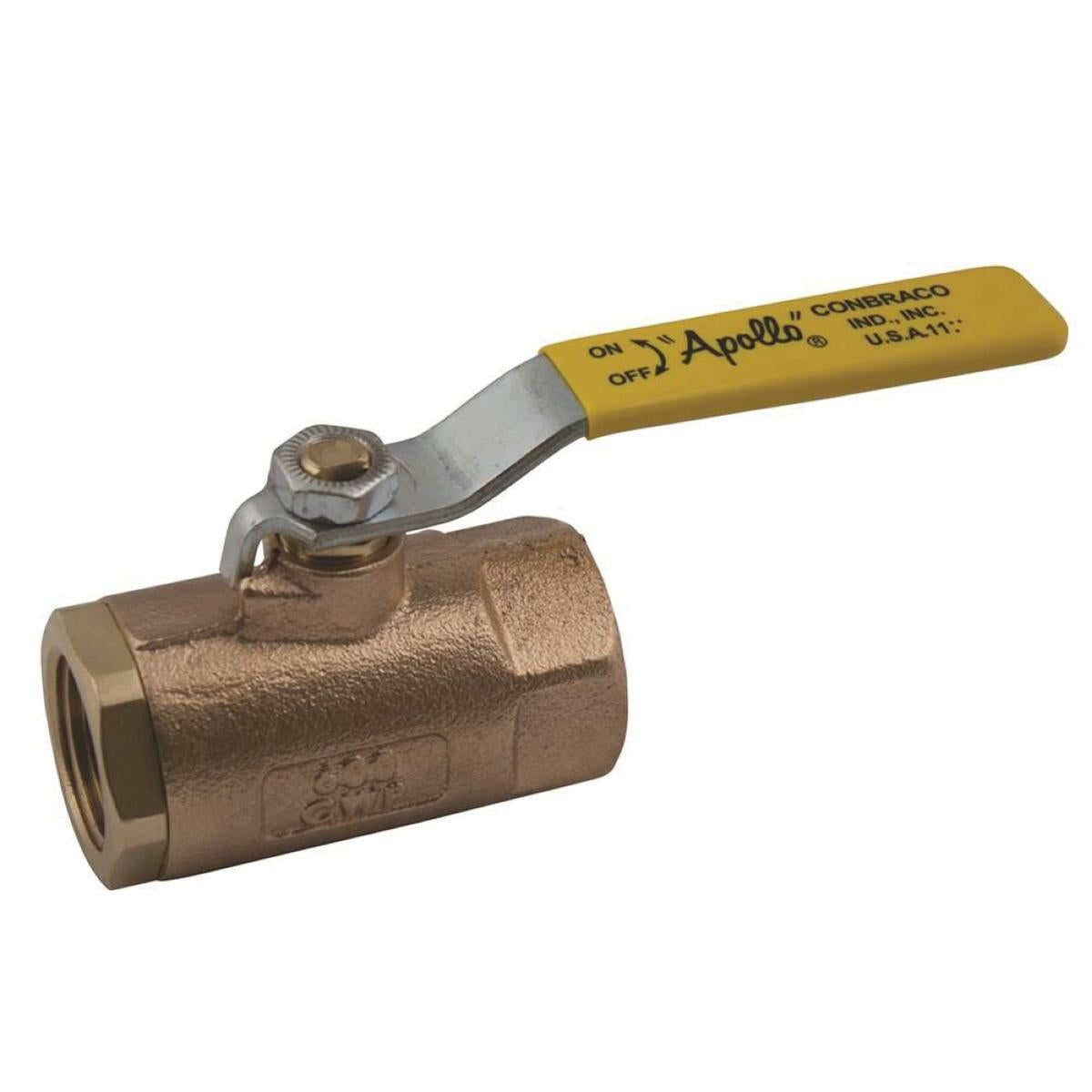

The CONBRACO 70-107-41 is a 2-piece standard port in-line ball valve with an automatic drain. This valve features female NPT connections and a bronze body. It is designed for a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). Suitable for temperatures ranging from -20 to 450 DEG F.

• 2-Piece Standard Port In-Line Ball Valve
• Automatic Drain
• Premium materials and heavy-duty construction

Product Highlights

This ball valve offers reliable performance with its adjustable stem packing gland and blowout-proof stem design. 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-107-41

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Handle Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4.37 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 84
• Options: Automatic Drain (+50°F to 200°F limit. 125 psig max.)
• Port Size: 1-1/2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 4.37 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Actuator Type: Lever
• Domestic/Import: Domestic
• Media: Gas, Water
• Orifice Size: 1-1/4 in
• Port Type: Standard
• End Style: FNPT
• Softgoods Material: RMPTFE
• Type: 2-Piece
