Conbraco 70-107-08 Brz Std Port Ball Valve Reverse Stem 1-1/2 in

Product Description

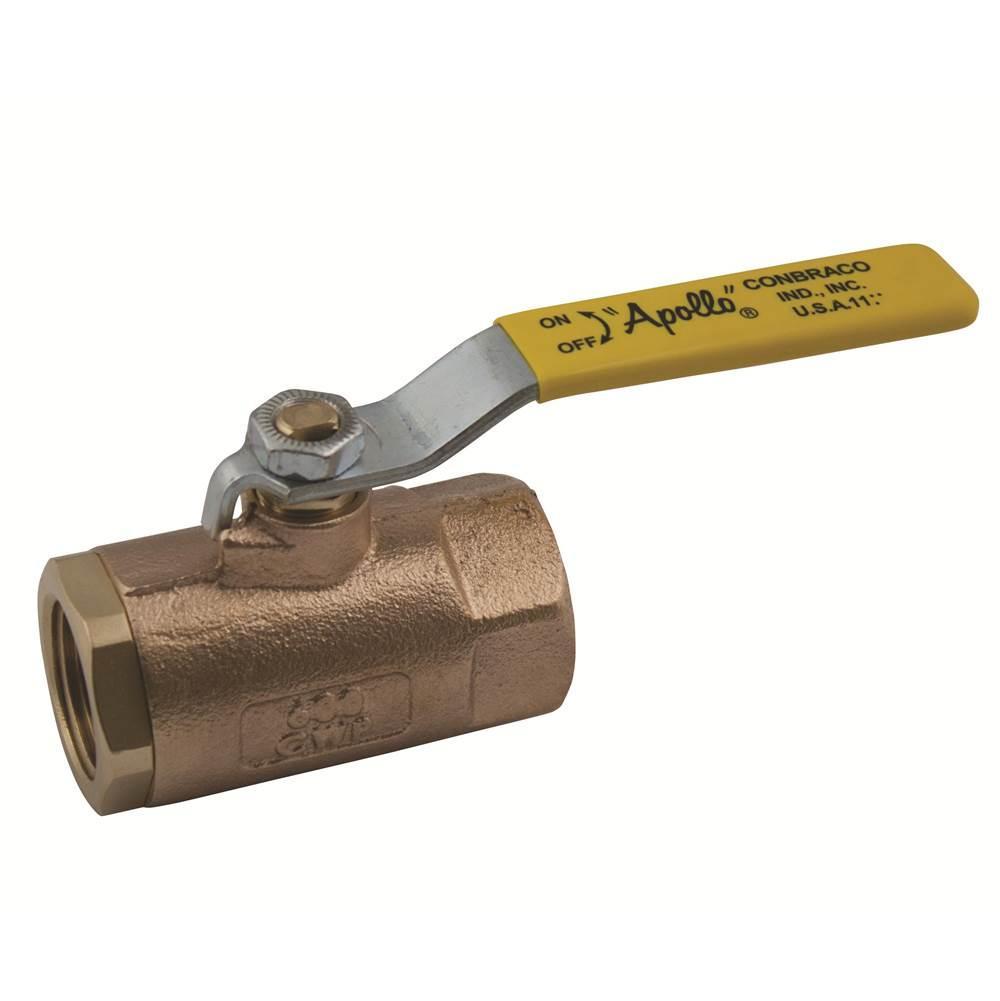

The CONBRACO 70-107-08 is a 2-piece standard port in-line ball valve with a 90-degree reversed stem. Featuring female NPT connections and a lever handle operator, this valve is designed for general purpose use. It is made from bronze with a brass ball and stem.

• 2-Piece Standard Port In-Line Ball Valve
• 90 DEG Reversed Stem
• Lever Handle Operator

Product Highlights

This bronze ball valve offers reliable performance with its robust construction and versatile design.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-107-08
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening Size: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard: ASTM B584, ASTM B16
• Body Material Specification: UNS C84400
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4.37 IN
• Lead Free: No
• Flow Coefficient (Cv): 84
• Actuator Type: Lever
• Media: Gas, Water
• Port Type: Standard
• Top to Inlet Center: 3.06 in
• Inlet to Outlet Length: 4.37 in
• Domestic/Import: Domestic
