Conbraco 70-106-27 Bronze Standard Port Ball Valve With Lock Lever Handle 1-1/4

Product Description

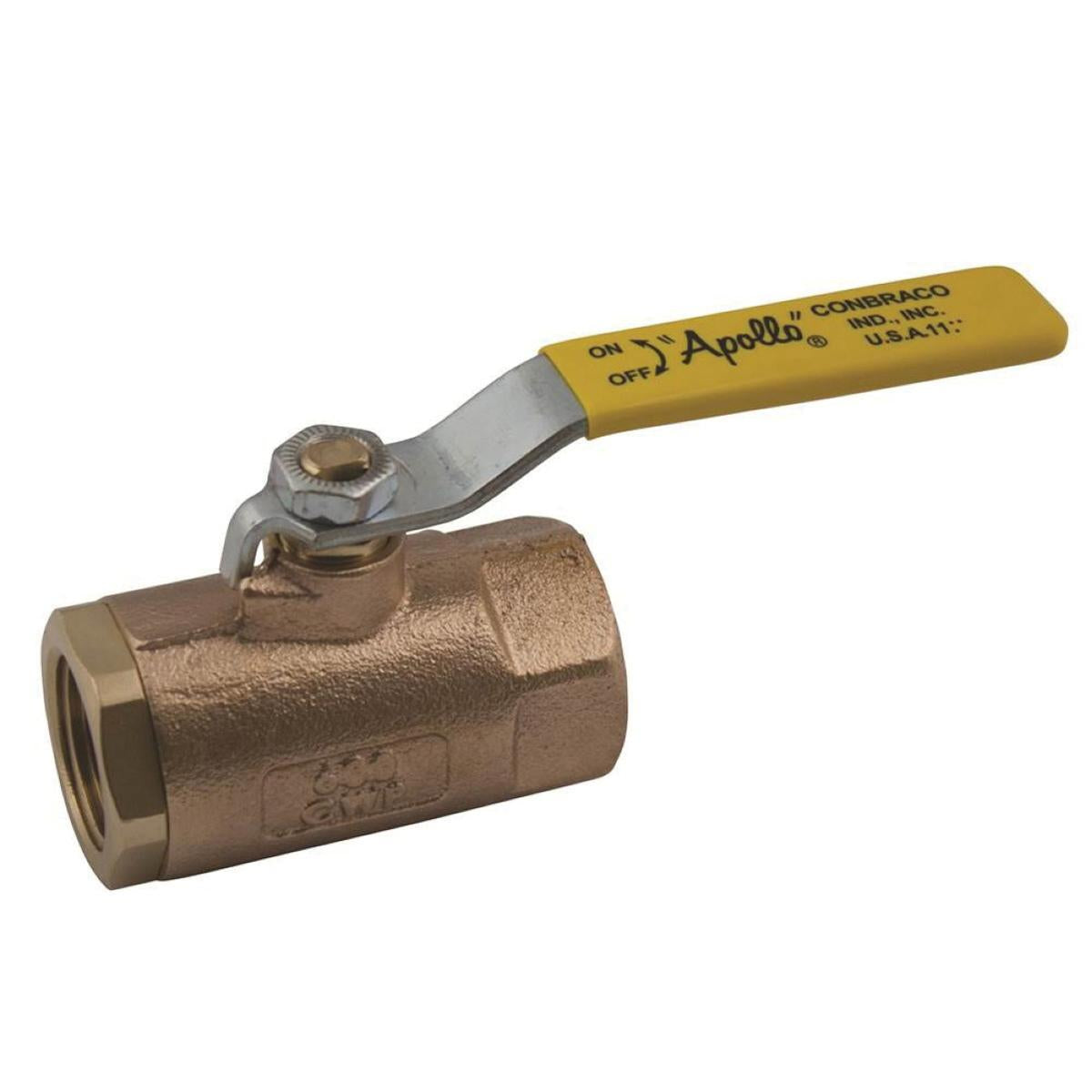

The CONBRACO 70-106-27 is a 2-piece standard port in-line ball valve. It features female NPT connections and a latch-lock lever handle. The valve is constructed with a bronze body, brass stem, and RPTFE seat. It provides reliable shutoff and easy operation for general purpose use.

• 2-Piece Standard Port In-Line Ball Valve
• Latch-Lock Lever Handle
• Premium materials and heavy-duty construction

Product Highlights

This bronze ball valve offers reliable performance with a latch-lock lever handle and durable construction.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-106-27
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4 IN
• Lead Free: No
• Other Physical Dimension: 2.62 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 48
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 4.00 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Actuator Type: Latch-Lock Lever
• Inlet to Outlet Length: 4 in
• Material Standard: ASTM B584-C84400, ASTM B16
• Media: Gas, Water
• Orifice Size: 1 in
• Port Type: Standard
• Top to Inlet Center: 2.62 in
• Lead-Free/Contains Lead: Contains Lead
