Conbraco 70-105-41 Brz Std Port Ball Valve W/Auto Drain 1 IN

Product Description

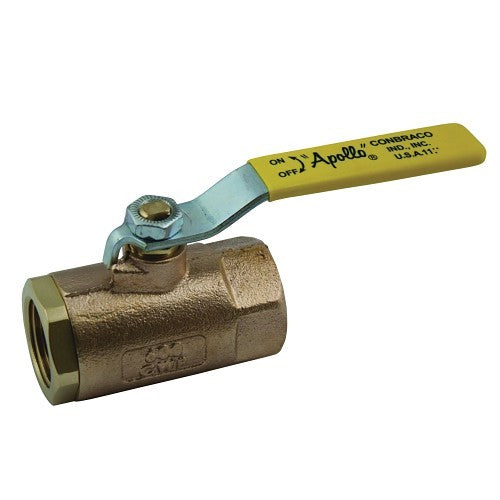

The CONBRACO 70-105-41 is a 2-piece standard port in-line ball valve with an automatic drain. It features a bronze body, a lever handle, and FNPT connection type. Designed for durability, this valve is suitable for various applications with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Standard Port In-Line Ball Valve
• Automatic Drain
• Bronze construction

Product Highlights

This ball valve offers reliable performance with its robust construction and automatic drain feature, making it ideal for demanding environments.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-105-41
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 500 deg F
• Opening: 0.87 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 3.37 IN
• Lead Free: No
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Flow Co-Efficient (Cv): 43
• Options: Automatic Drain (+50°F to 200°F limit. 125 psig max.)
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Flow Direction: 2-Way
• Overall Length: 3.37 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Actuator Type: Lever Handle
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.37 in
• Orifice Size: 0.87 in
• Port Type: Standard
• Pressure Class: 600 psi
• Softgoods Material: PTFE
• Top to Inlet Center: 2-1/4 in
