Conbraco 70-105-27 Brz Std Port Ball Valve W/Lock Lever Hdl 1 IN

Product Description

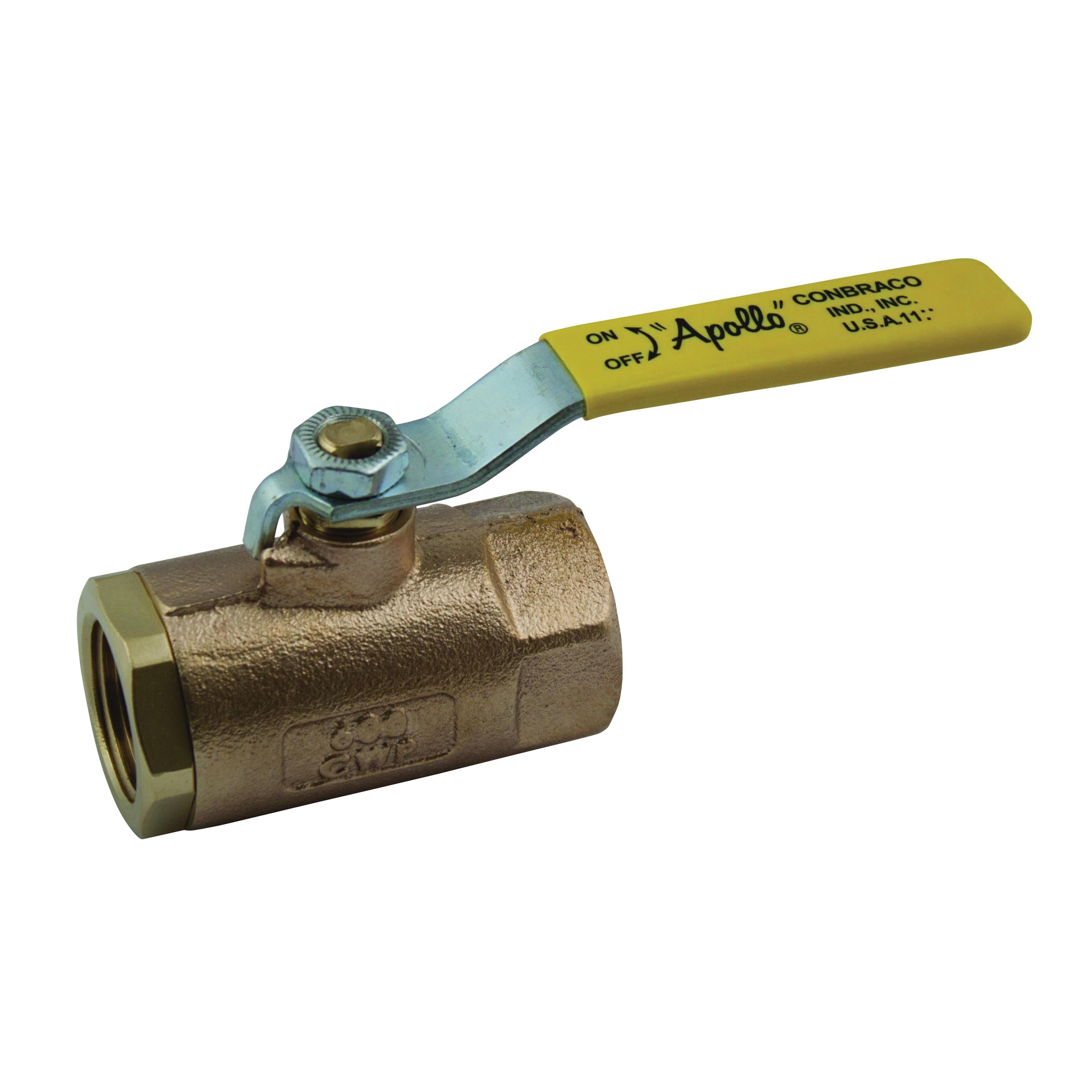

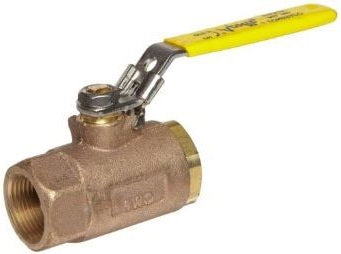

The CONBRACO 70-105-27 is a 2-piece standard port in-line ball valve. It features a latch-lock lever handle and female NPT connections. Constructed with a bronze body, brass stem and ball, and stainless steel handle, this valve is suitable for various applications. It has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Standard Port In-Line Ball Valve
• Latch-Lock Lever Handle
• Flow Co-Efficient (Cv): 43

Product Highlights

This ball valve offers reliable performance with its robust construction and latch-lock lever handle, suitable for industrial and commercial applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-105-27

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 3.37 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 43
• Port Size: 1 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 3.37 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Actuator Type: Latch Lock Lever
• Material Standard: ASTM B16/B584-C84400
• Opening Size: 0.87 in
• Port Type: Standard
• Series: 70-100 Series
• Inlet to Outlet Length: 3.37 in
• Top to Inlet Center: 2-1/4 in
• Size: 1 in
• End Style: Threaded
• Type: Ball Valve
• Option: SS Locking Handle
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
