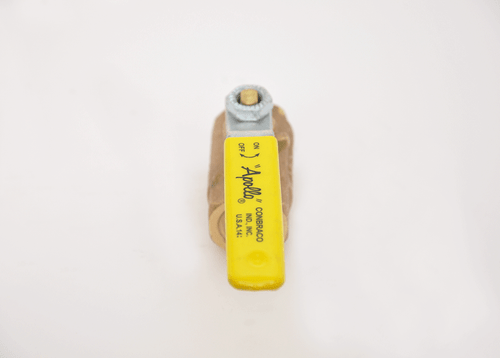

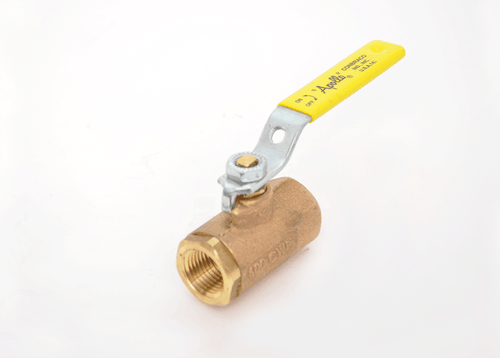

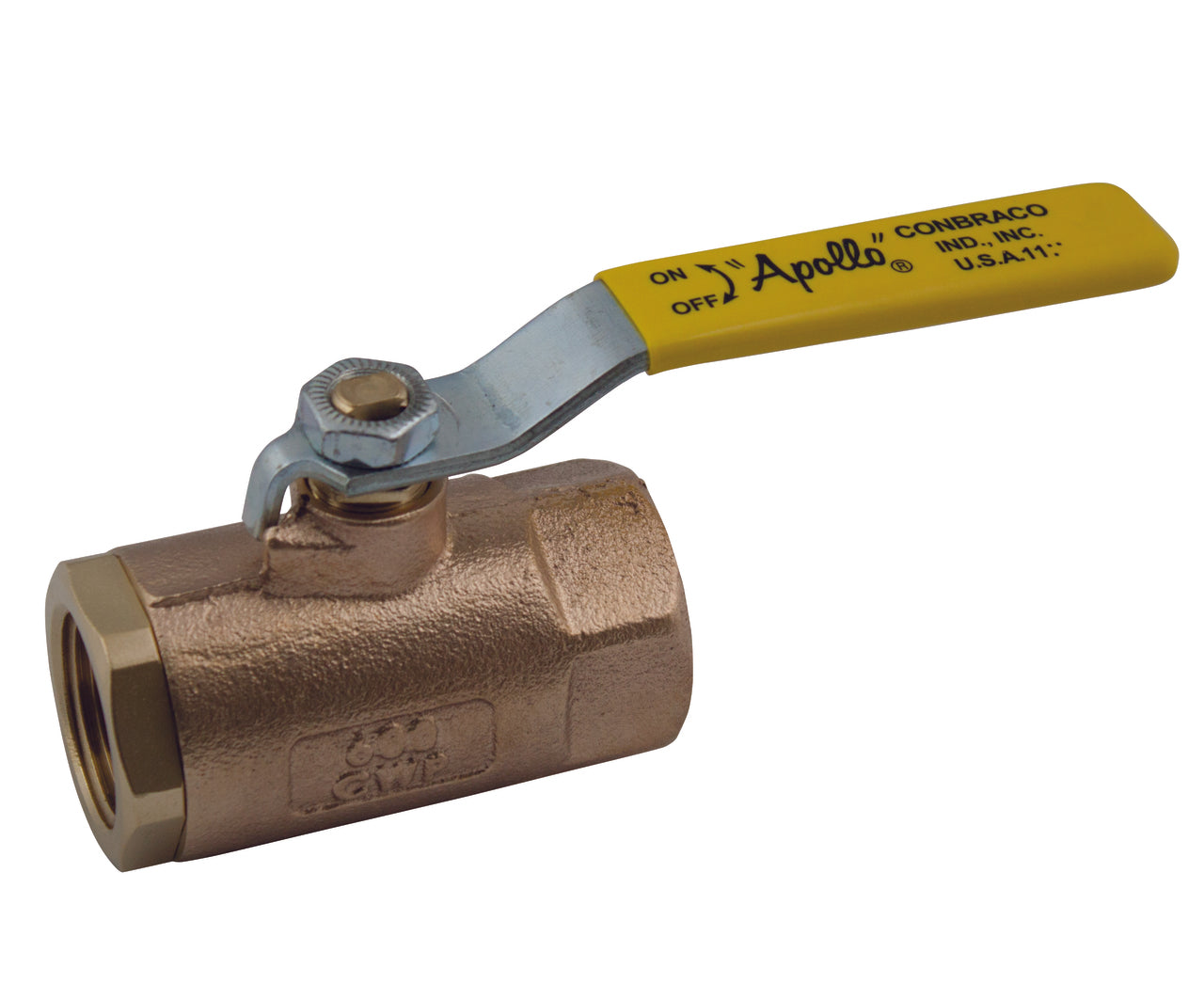

Conbraco 70-105-01 Brz Std Ball Valve 1 IN

Product Description

The CONBRACO 70-105-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70-100. This valve features a 1 IN nominal size and FNPT connection type. It is designed with a bronze body and a lever handle operator. Suitable for various applications with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• Nominal size of 1 IN with FNPT connection.
• Constructed with a bronze body for durability.
• Features a steel lever handle with vinyl grip for easy operation.

Product Highlights

The CONBRACO 70-105-01 ball valve is ideal for controlling flow in diverse applications, offering robust construction and reliable performance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-105-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1 Inch
• Connection Type: FNPT x FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.87 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 3.37 IN
• Lead Free: No
• Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Flow Co-Efficient (Cv): 43
• Manufacturer: Conbraco
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• MPN: 70-105-01
• Port Size: 1 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome-Plated Bronze
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 3.37 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Item: Ball Valve
• Size: 1 in
• Material: Bronze
• End Style: Threaded
• Type: Ball Valve
• Series: 70-100
• Category: Ball Valves
• Brand: Apollo Valves
• Item Name: Ball Valve
• Number Of Ports/Ways: 2
• Opening Size: 0.87 Inch
• Seal: PTFE
• Stem: B16 Brass
• Packing: MPTFE
• Actuation/Operator: Lever Handle
