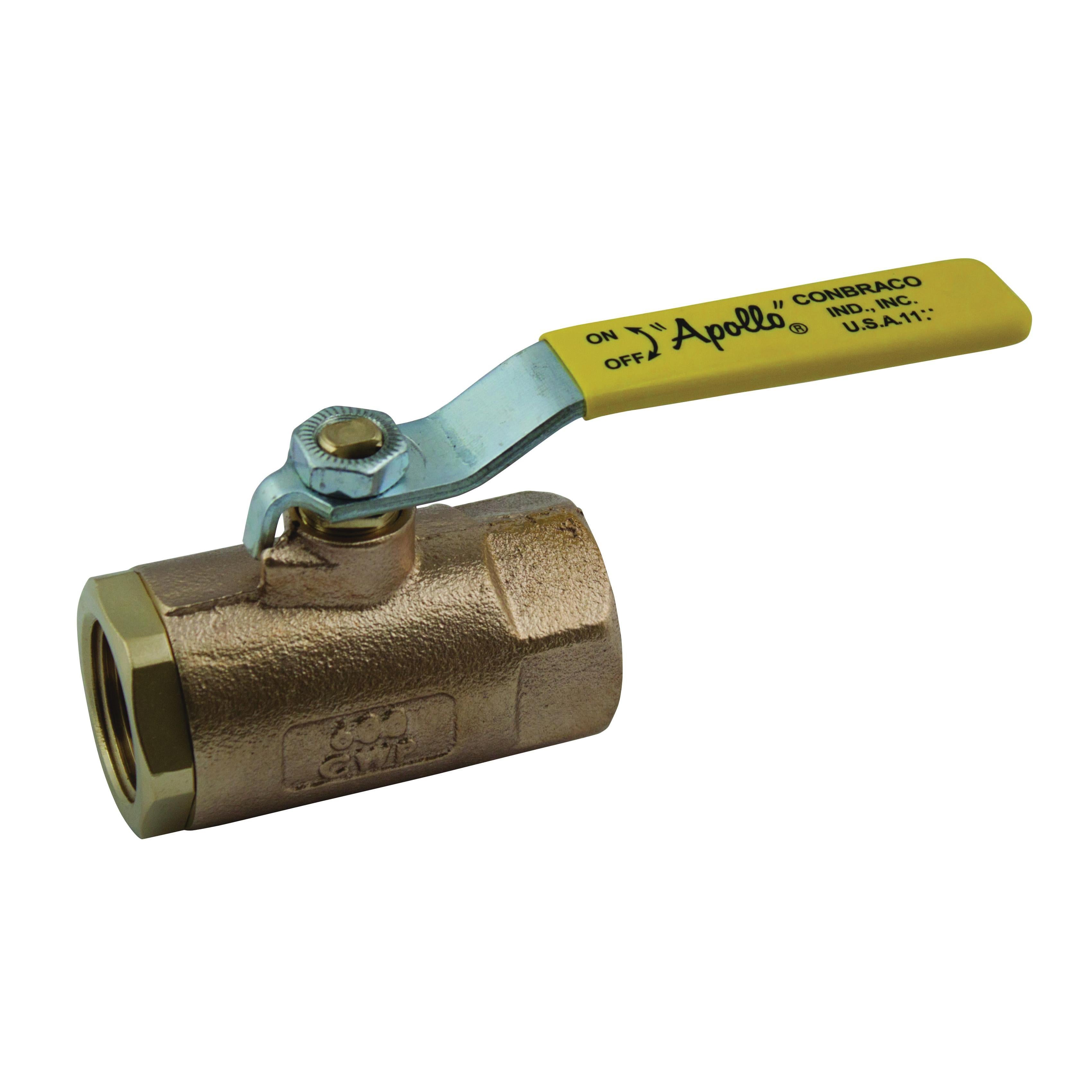

Conbraco 70-104-27 Ball Valve 3/4 IN Brz Std Port W/Lock Lever Hdl

Product Description

The CONBRACO 70-104-27 is a 2-Piece Standard Port In-Line Ball Valve, part of the Series 70-100. It features FNPT connection type and a latch-lock lever handle. The valve is constructed with a bronze body and a stainless steel handle. It is designed for pressure ratings up to 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Standard Port In-Line Ball Valve
• Latch-Lock Lever Handle
• Sliding lock mechanism secures handle in open or closed position

Product Highlights

This bronze ball valve features a latch-lock lever handle and is suitable for general purpose applications with a wide range of options.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-104-27
• Country of Origin: Domestic

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 500 deg F
• Opening: 0.68 IN
• Body Material: Bronze
• Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel w/ Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 3 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 30
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 3.00 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Minimum Operating Temperature: -20 °F
• Port Size: 3/4 NPT
• Material Standard: ASTM B16/B584-C84400
• Actuator Type: Latch Lock Lever
• Inlet to Outlet Length: 3 in
• Top to Inlet Center: 2.12 in
