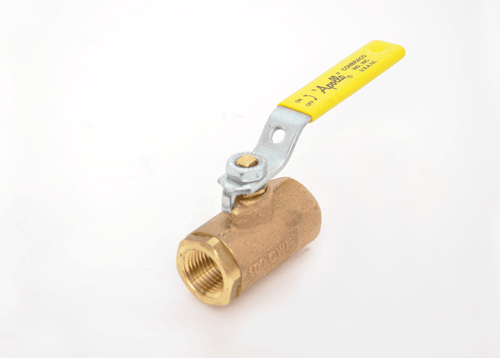

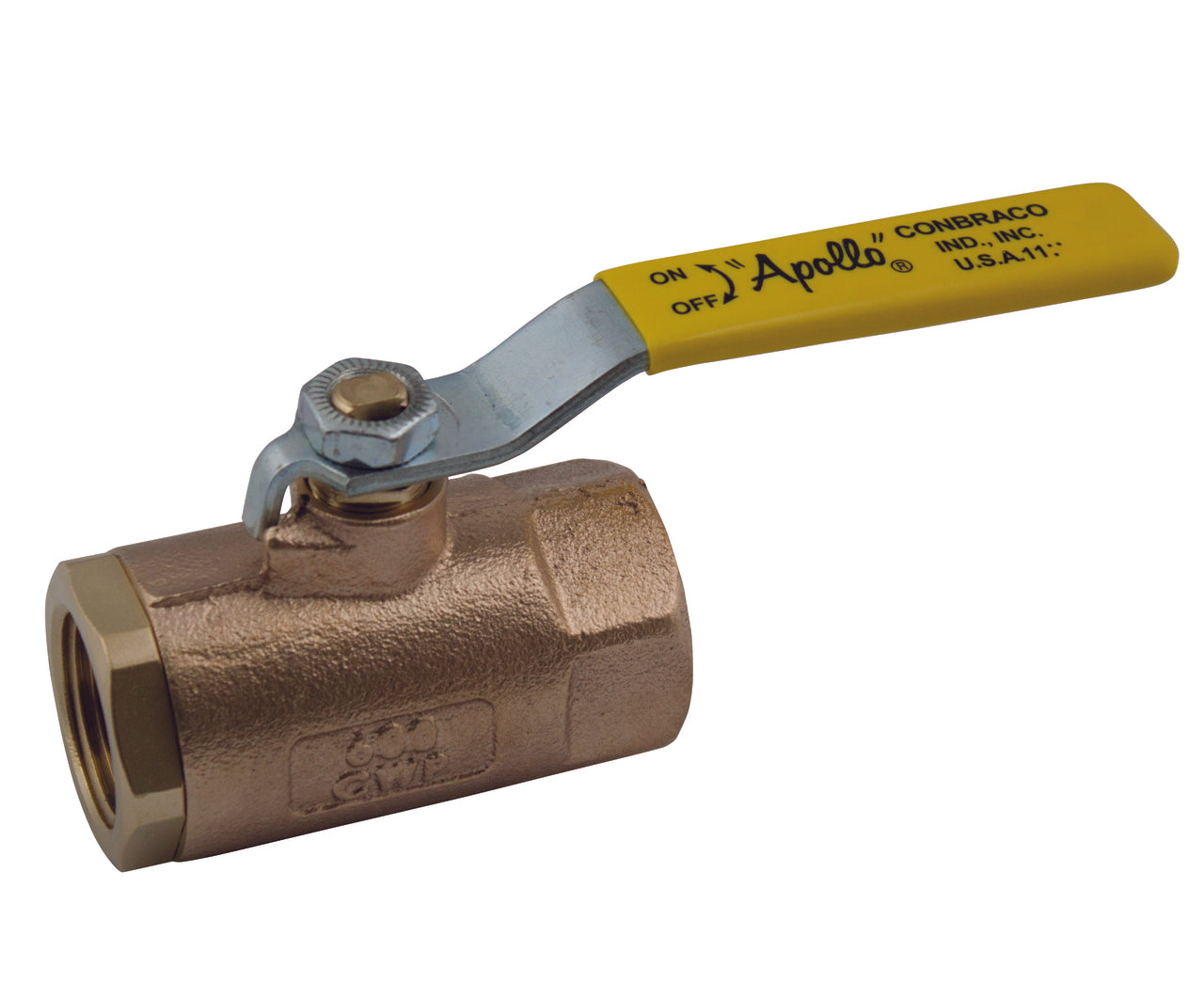

Conbraco 70-104-01 Brz Std Ball Valve 3/4 IN

Product Description

The CONBRACO 70-104-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70-100. Featuring a 3/4 IN nominal size and FNPT connection type. Constructed with a bronze body, brass stem, and chrome plated brass ball. Designed for a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• Nominal size of 3/4 IN
• Features a lever handle operator type with a steel handle and vinyl grip
• Temperature rating of -20 to 450 DEG F

Product Highlights

This bronze ball valve is suitable for water, oil, and gas applications, offering reliable performance with its robust design and quality materials.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-104-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.68 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Width: 3 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 30
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Port Size: 3/4 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 3.00 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• End Style: FNPT
• Softgoods Material: MPTFE/RPTFE
• Actuator Type: Lever Handle
• Inlet to Outlet Length: 3 in
• Media: Water
• Type: 2-Piece
• Warranty: 5 Years
• Domestic/Import: Domestic
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
