Product Description

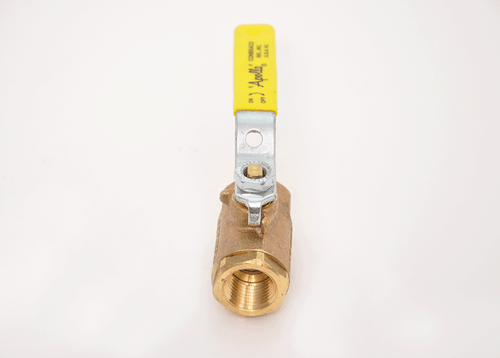

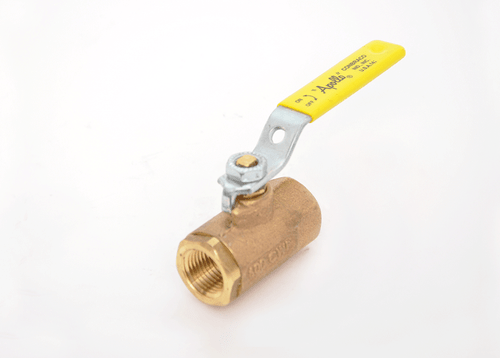

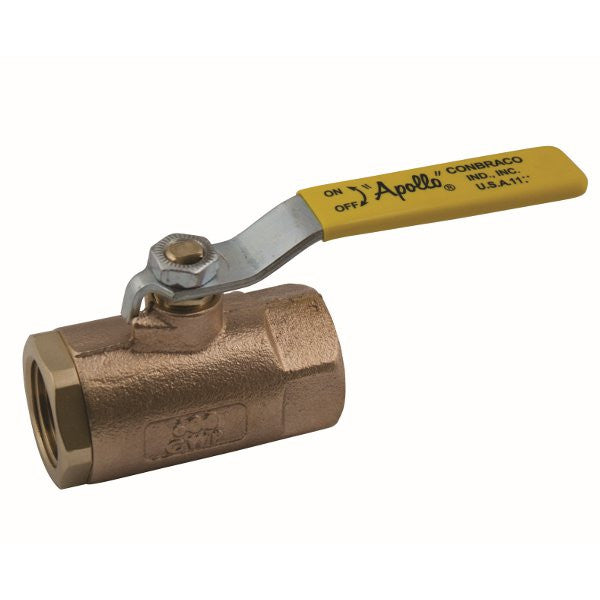

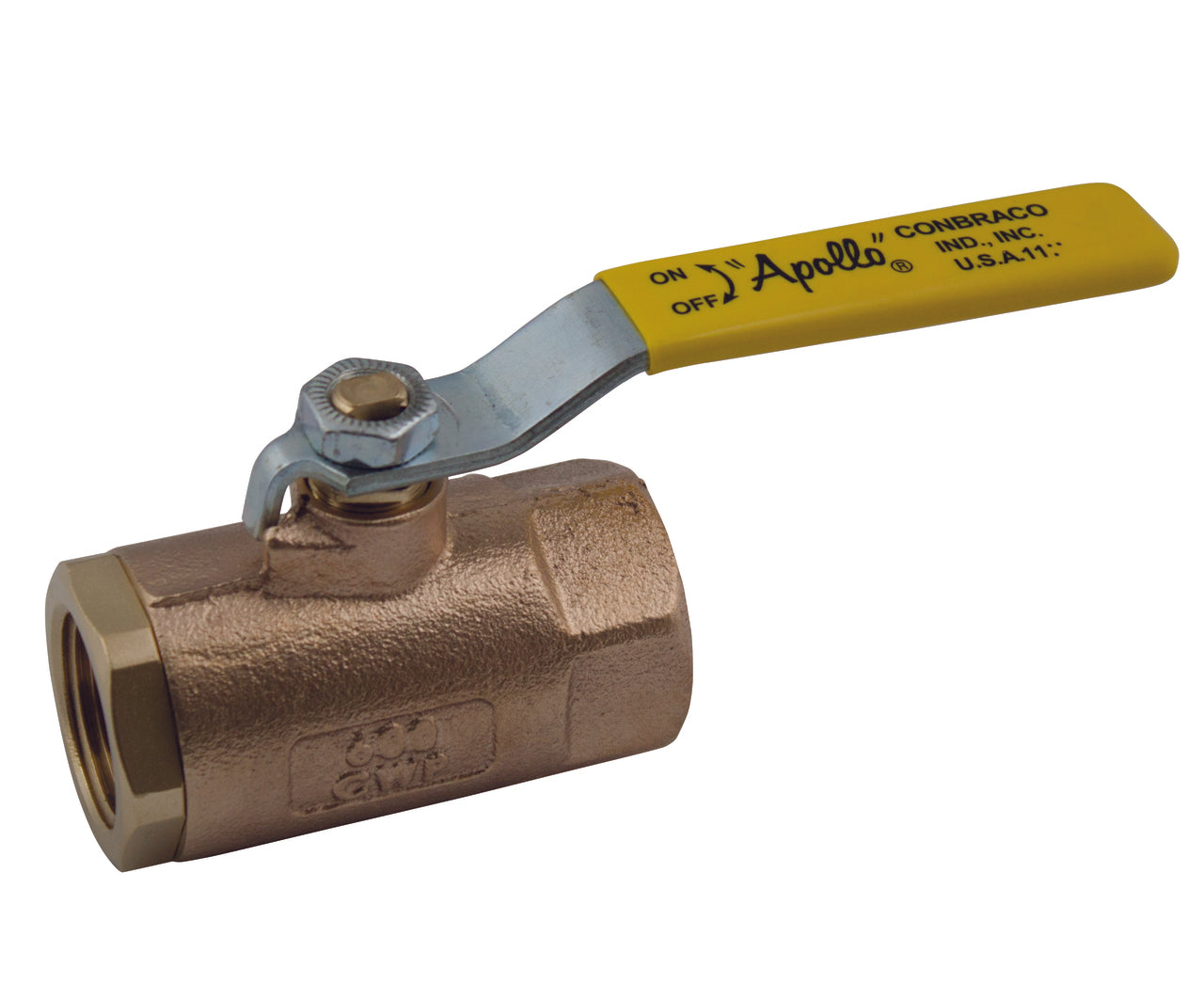

The CONBRACO 70-103-01 is a 2-Piece In-Line Standard Ball Valve, part of the Series 70-100. It features a bronze body and a lever handle for manual operation. Designed for various applications, it ensures reliable performance with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).
- Nominal size of 1/2 IN with FNPT connection type.
- Constructed with a bronze body and brass stem.
- Suitable for temperatures ranging from -20 to 450 DEG F.
Product Highlights
This bronze ball valve is ideal for controlling flow in hydronic and pneumatic systems, offering durability and precise operation.
Product Information
Standard Information
-
Brand: CONBRACO
-
Manufacturer Part Number: 70-103-01
-
Country of Origin: United States
Technical Specifications
-
Series/Model: Series 70-100
-
Nominal Size: 1/2 IN
-
Connection Type: FNPT
-
Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
-
Temperature Rating: -20 To 450 DEG F
-
Opening: 1/2 IN
-
Body Material: Bronze
-
Operator Type: Lever Handle
-
Handle Material: Steel With Vinyl Grip
-
Stem Material: Brass
-
Trim Material: Brass Ball
-
Packing Material: MPTFE Stem
-
Seat Material: RPTFE
-
Seal Material: PTFE
-
Body Material Standard: ASTM B584
-
Ball And Stem Material Standard: ASTM B16
-
Body Material Specification: UNS C84400
-
Finish/Color: Chrome Plated Ball, Zinc Plated Handle
-
Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
-
Width: 2-1/4 IN
-
Lead Free: No
-
Inlet Center To Top Of Handle: 1-3/4 IN
-
Handle Length: 3.87 IN
-
Flow Co-Efficient (Cv): 15
-
Manufacturer: Conbraco
-
Major Category: Hydronics/Pneumatics
-
Sub Category: Valves & Fittings
-
Product Type: Hand Valves
-
Port Size: 1/2 NPT
-
Standards: MSS SP-110 Compliant
-
Body Style: 2 Piece
-
Control Type: Manually Operated
-
Handle Style: Lever Handle
-
Ball Material: Chrome Plated Brass
-
Mounting Type: Inline Threaded
-
Porting Style: Standard Port
-
Flow Direction: 2-Way
-
Overall Length: 2.25 in
-
O-Ring Material: PTFE
-
Connection Gender: Threaded
-
Body Seal Material: PTFE
-
Stem Seal Material: MPTFE
-
Valve Body Material: Cast Bronze
-
Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
-
Maximum Operating Pressure: 600 psi
-
Maximum Operating Temperature: 450 °F
-
Minimum Operating Temperature: -20 °F
-
Size: 1/2 in
-
End Style: Threaded
-
End 1 Type: FNPT
-
End 2 Type: FNPT
-
Product Family: 70-100 Series
-
Product Category: Valves
-
CUSTOM_Product Type2: Standard Port Ball Valves
-
Thread: Female
-
Material: Bronze
-
Brand: Apollo
