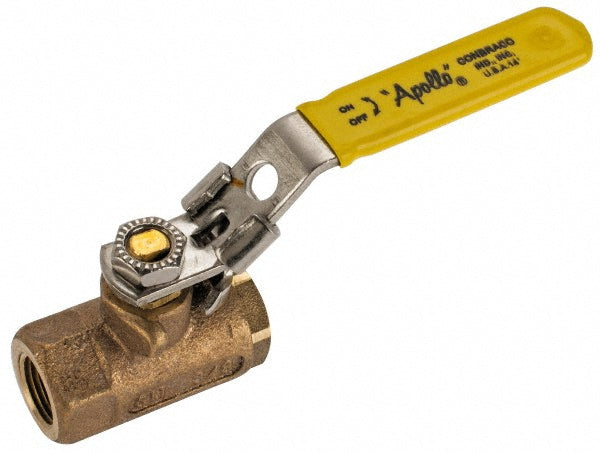

Conbraco 70-102-27 3/8 Brz Std Port Ball Valve W/Lock Lever Hdl

Product Description

The CONBRACO 70-102-27 is a 2-piece standard port in-line ball valve with a 3/8 inch nominal size and FNPT connection. It features a latch-lock lever handle, a bronze body, and a brass stem. Designed for durability, it withstands pressure up to 600 PSI (CWP) and temperatures from -20 to 450 DEG F.

• 2-Piece Standard Port In-Line Ball Valve
• Latch-Lock Lever Handle
• Nominal Size: 3/8 IN, Connection Type: FNPT

Product Highlights

This ball valve offers reliable performance with its robust construction and secure latch-lock lever handle.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-102-27
• Country of Origin: UNITED STATES

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel w/ Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: Reinforced Polytetrafluroethylene
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 7.2
• Port Size: 3/8 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 2.06 in
• O-Ring Material: PTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Valve Type: Ball; Standard
• Pipe Size: 3/8
• Valve Structure: 2-Piece
• End Connection: NPT
• Steam Pressure Rating (psi): 150
• Maximum Working Temperature (F): 500
• Actuator Type: Latch Lock Lever Handle
• Inlet to Outlet Length: 2.06 in
• Material Standard: ASTM B584 Grade C84400, ASTM B16 or B283 Grade C37700
• Opening Size: 0.37 in
• Port Type: Standard
• Domestic/Import: Domestic
