Conbraco 70-102-01 Brz Std Ball Valve 3/8 IN

Product Description

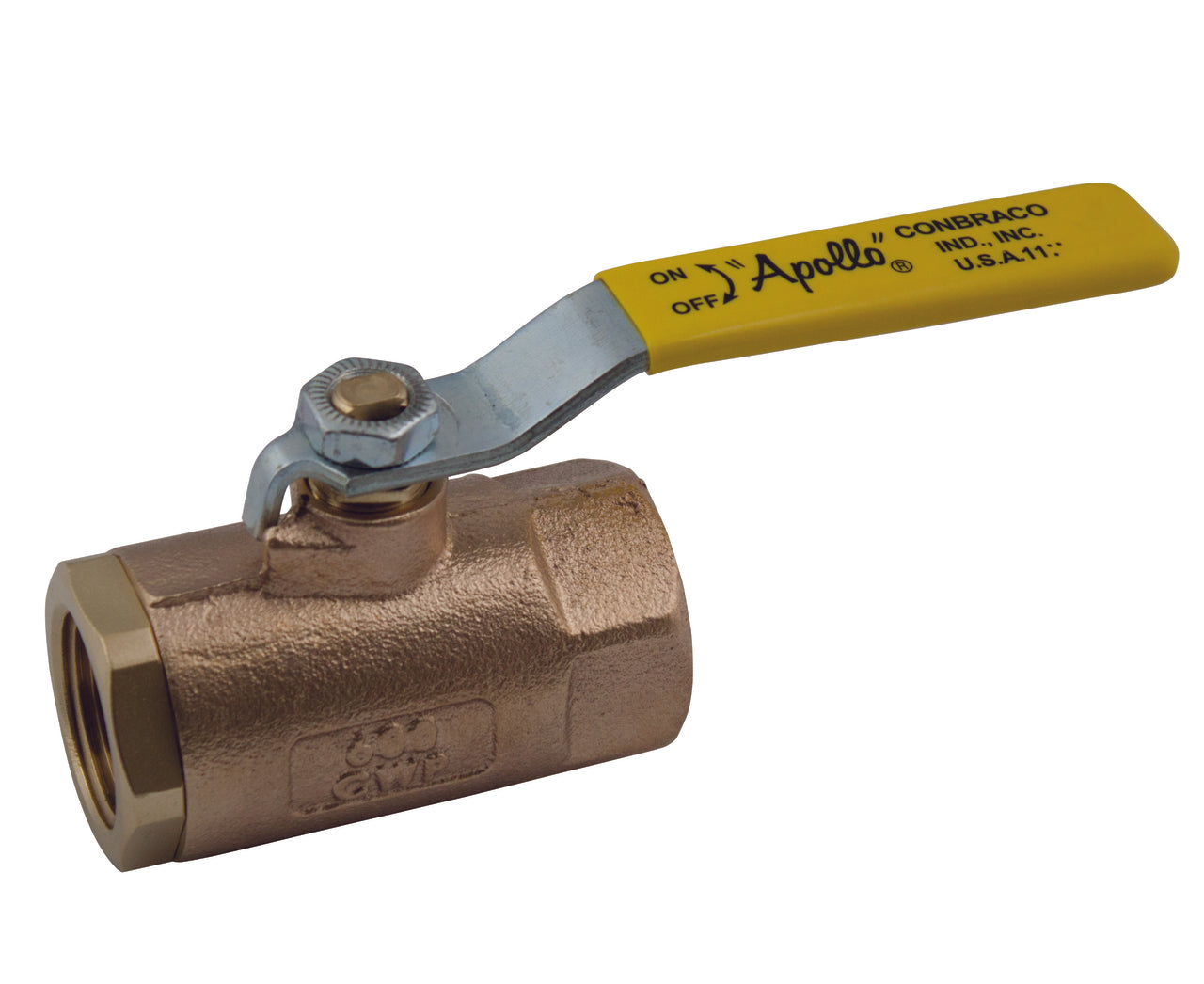

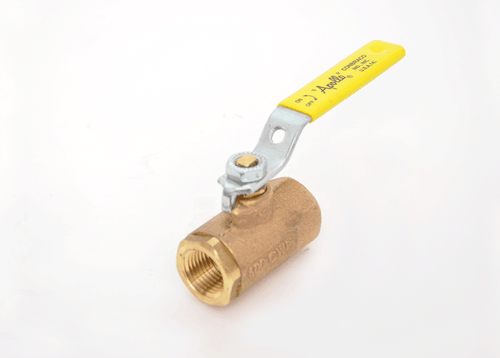

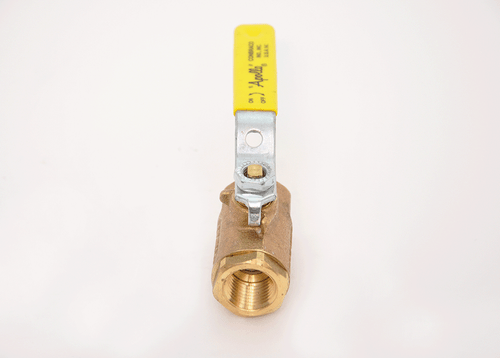

The CONBRACO 70-102-01 is a 2-piece in-line standard ball valve. It features a bronze body, a lever handle operator, and a brass stem. Designed for a nominal size of 3/8 IN with FNPT connection type. Suitable for applications requiring a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line
• Standard Ball Valve
• Lever Handle

Product Highlights

This bronze ball valve is suitable for water, oil, and gas applications, with a pressure rating of 600 PSI and 150 PSIG for saturated steam.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-102-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 3/8 IN
• Connection Type: Threaded (FNPT x FNPT)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1-3/4 IN
• Handle Length: 3.87 IN
• Flow Co-Efficient (Cv): 7.2
• Manufacturer: Conbraco
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Port Size: 3/8 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 2.06 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Item: Ball Valve
• Port: Standard
• Size: 3/8"
• Max. Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temp: 500 F
• Handle Type: Lever
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• End Style: Threaded
• Type: Ball Valve
• Apollo Number: 70-102-01
• Port Threads: 3/8" Pipe
• Max. PSI: 600
• Alternate Part Number: C1EN80
• Brand: Conbraco Ind
• Pack Size: 1.00
• UOM: EA
• Supplier Part Number: 7010201
• Material: Bronze
