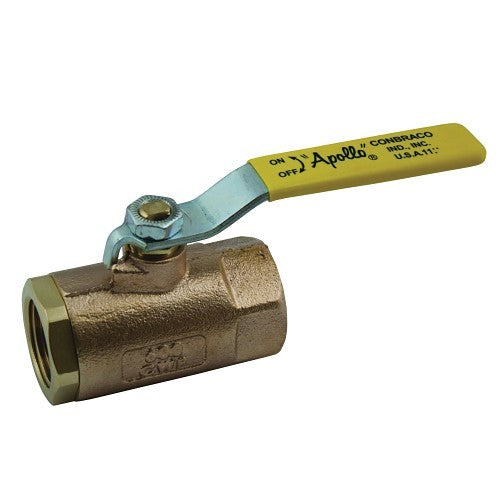

Conbraco 70-101-41 1/4 Brz Std Port Ball Valve W/Auto Drain

Brand: CONBRACO
SKU: 70-101-41
Availability: In Stock

Ships same day if ordered by 12 pm
$43.03
$43.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 70-101-41 is a 2-piece standard port in-line ball valve with an automatic drain. It features female NPT connections and a bronze body. Designed for durability, it has a steel lever handle with a vinyl grip. Suitable for various media, this valve ensures reliable performance with its robust construction.

  • 2-Piece Standard Port In-Line Ball Valve
  • Automatic Drain
  • Bronze construction

Product Highlights

Durable bronze ball valve with automatic drain, ideal for general purpose use. Features a steel lever handle with vinyl grip.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 70-101-41
  • Country of Origin: Domestic
Technical Specifications
Series/Model
Series 70-100
Nominal Size
1/4 IN
Connection Type
FNPT
Pressure Rating
600 PSI (CWP), 150 PSI (SWP)
Temperature Rating
-20 To 450 DEG F
Opening
0.37 IN
Body Material
Bronze
Operator Type
Lever Handle
Handle Material
Steel With Vinyl Grip
Stem Material
Brass
Trim Material
Brass Stem and RPTFE Seat
Packing Material
MPTFE Stem
Seat Material
RPTFE
Seal Material
PTFE
Material Standard Body
ASTM B584
Material Standard Ball And Stem
ASTM B16
Material Specification Body
UNS C84400
Finish/Color
Chrome Plated Ball, Zinc Plated Handle
Industry Standards
MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
Width
2.06 IN
Lead Free
No
Other Physical Dimension
1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
Flow Co-Efficient (Cv)
8.4
Options
Automatic Drain (+50°F to 200°F limit. 125 psig max.)
Port Size
1/4 NPT
Standards
MSS SP-110 Compliant
Body Style
2 Piece
Control Type
Manually Operated
Handle Style
Lever Handle
Ball Material
Chrome Plated Brass
Mounting Type
Inline Threaded
Porting Style
Standard Port
Flow Direction
2-Way
Overall Length
2.06 in
O-Ring Material
PTFE
Connection Gender
Threaded
Body Seal Material
PTFE
Stem Seal Material
MPTFE
Valve Body Material
Cast Bronze
Media Pressure Rating
Cold Water - 600 psi, Steam - 150 psi
Maximum Operating Pressure
600 psi
Maximum Operating Temperature
450 °F
Minimum Operating Temperature
-20 °F
Apollo Number
70-101-41
Max. PSI
600
Actuator Type
Lever Operated
Domestic/Import
Domestic
End Style
FNPT
Media
Water
Softgoods Material
MPTFE
Top to Inlet Center
1-3/4 in
Type
2-Piece
