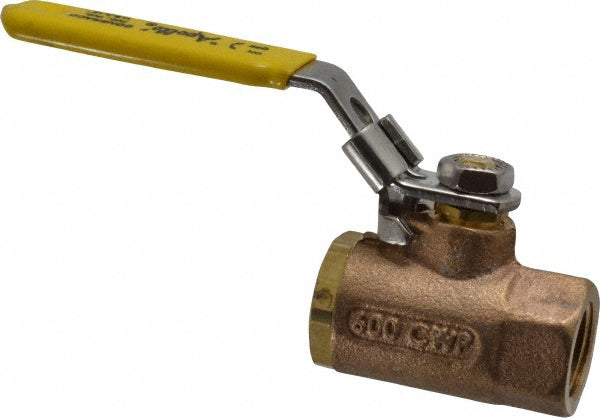

Conbraco 70-101-27-41 Brz Std Port Ball Valve W/Latch Lock Hdl 1/4 IN

Product Description

The CONBRACO 70-101-27-41 is a 2-piece standard port in-line ball valve with automatic drain. It features female NPT connections and a latch-lock lever handle. The valve is constructed with a bronze body, brass stem, and RPTFE seat, suitable for applications requiring durable and reliable flow control. It is compliant with MSS-SP-110 and CSA B51 standards.

• Features a latch-lock lever handle
• Has a pressure rating of 600 PSI (CWP), 150 PSI (SWP)
• Compliant with MSS-SP-110 and CSA B51 standards

Product Highlights

This ball valve offers reliable performance with its robust construction and compliance with industry standards, making it suitable for various applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-101-27-41
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Flow Co-Efficient (Cv): 8.4
• Options: Automatic Drain (+50°F to 200°F limit. 125 psig max.)
• Port Size: 1/4 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 2.06 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Size: 1/4 in
• End Style: Threaded
• Type: Ball Valve
• Option: Automatic Drain
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Actuator Type: Latch-Lock Lever
• Domestic/Import: Domestic
• Inlet to Outlet Length: 2.06 in
• Orifice Size: 0.37 in
• Port Type: Standard
• Softgoods Material: PTFE
• Top to Inlet Center: 1-3/4 in
• Item Name: In-Line Ball Valve With Automatic Drain
• Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16
• Material Specification: Body: UNS C84400
• Additional Specifications: Flow Co-Efficient (Cv): 8.4
