Conbraco 70-101-27 1/4 Brz Std Port Ball Valve W/Lock Lever Hdl

Product Description

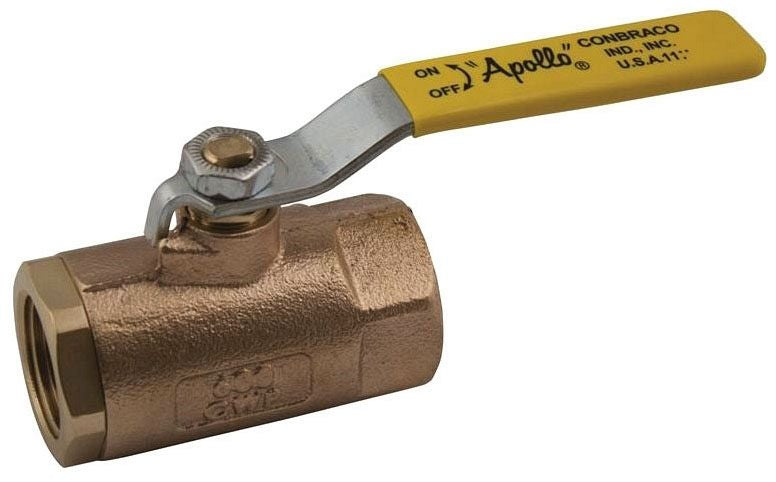

The CONBRACO 70-101-27 is a 2-piece standard port in-line ball valve. It features a bronze body material and a latch-lock lever handle. This valve is designed for a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of -20 to 450 DEG F.

• Nominal size of 1/4 IN with FNPT connection type.
• Constructed with bronze body and stainless steel handle.
• Compliant with MSS-SP-110 and CSA B51 industry standards.

Product Highlights

This ball valve offers reliable performance with its robust construction and industry standard compliance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-101-27
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1-3/4 IN
• Handle Length: 3.87 IN
• Flow Co-Efficient (Cv): 8.4
• Port Size: 1/4 NPT
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Stainless Steel Latch-Lock Lever & Nut
• Overall Length: 2.06 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Actuator Type: Latch-Lock Lever
• Domestic/Import: Domestic
• End Style: FNPT
• Orifice Size: 0.37 in
• Port Type: Standard
• Softgoods Material: PTFE
• Top to Inlet Center: 1-3/4 in
• Type: 2-Piece
• CWP: 600
• Material: Bronze
• Pieces: 2
• Size: 1/4 in
