Conbraco 70-101-01 Bronze Ball Valve 1/4 in

Product Description

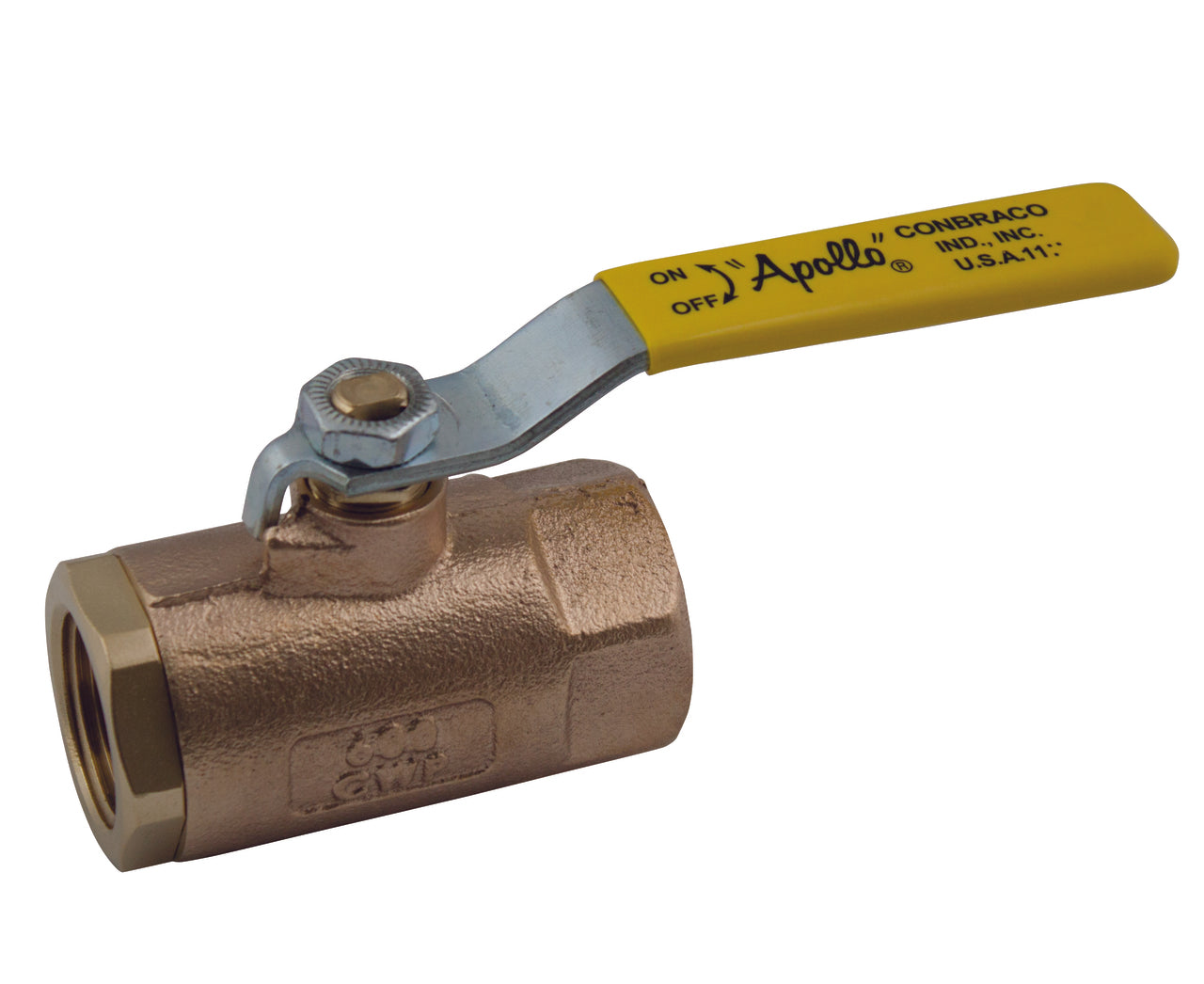

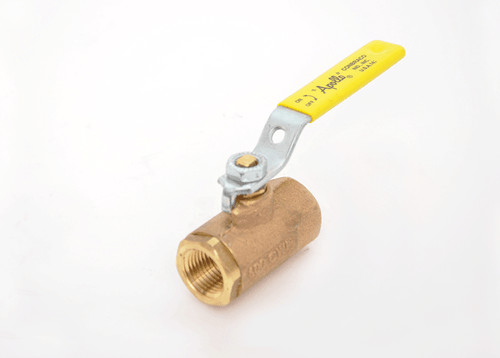

The CONBRACO 70-101-01 is a bronze ball valve with 1/4 inch FNPT connections. This 2-piece in-line standard port valve is suitable for water, oil, gas, and saturated steam applications. It features a steel lever handle with vinyl grip and a chrome-plated brass ball. Designed for durability and performance in various industrial applications.

• Bronze body material conforming to ASTM B584 UNS C84400
• Operating temperature range of -20 to 450 DEG F
• Pressure rating of 600 PSI (CWP) and 150 PSI (SWP)

Product Highlights

This bronze ball valve offers reliable shutoff and control for diverse media, ensuring safe and efficient operation.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-101-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 1-3/4 IN
• Handle Length: 3.87 IN
• Flow Co-Efficient (Cv): 8.4
• Manufacturer: Aalberts Integrated Piping Systems
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Model Number (MPN): 70-101-01
• Application: Water, Oil, Gas, Saturated Steam
• Port Size: 1/4 NPT
• Type: Ball Valve
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 2.06 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Size: 1/4 in
• End Style: Threaded
• Series: 70-100
• Option: Full Port
• Category: Ball Valves
• CV Factor: 8.40
• Brand: Conbraco Ind Inc
• Pack Size: 1.00
• UOM: EA
• Orifice Diameter: 0.37
• Ports: 1/4 NPT
• Seal Kit: 70-002-01
• Supplier Part Number: 7010101
• Alternate Part Numbers: B-6000-1/4, C1EN78
• Product Weight: 0.55 lbs
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Nominal diameter connection 1: DN 8
• Outer pipe diameter connection 1: 13.72mm
• Outer pipe diameter connection 1 (imperial): 0.54"
• Connection 1: Internal thread conical (NPT)
• With coupling connection 1: No
• Nominal diameter connection 2: DN 8
• Outer pipe diameter connection 2: 13.72mm
• Outer pipe diameter connection 2 (imperial): 0.54"
• Connection 2: Internal thread conical (NPT)
• With coupling connection 2: No
• With drain valve: No
• With drain possibility (connection): No
• With non-return valve: No
• With filter: No
• With thermometer: No
• With insulation shell: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medium temperature (continuous): -28.89°C - 260°C
• Medium temperature (continuous) (imperial): -20.002°F - 500°F
• Medically clean: No
• Grease-free: No
• Operation: Lever handle
• Housing construction: 2-part
• Full bore: No
• Length of connection 1: 25.58mm
• Length of connection 1 (imperial): 1.01"
• Working length connection 1: 15.42mm
• Working length connection 1 (imperial): 0.61"
• Length of connection 2: 25.63mm
• Length of connection 2 (imperial): 1.01"
• Working length connection 2: 15.47mm
• Working length connection 2 (imperial): 0.61"
• Handle height: 16.51mm
• Handle height (imperial): 0.65"
• Handgrip length: 13.97mm
• Handgrip length (imperial): 0.55"
