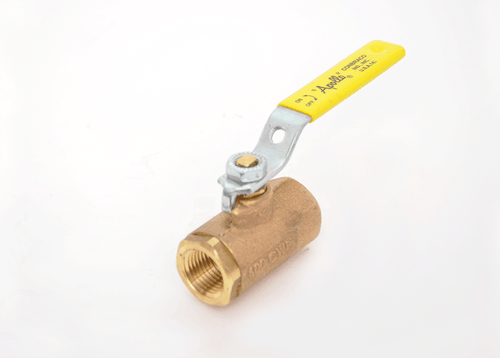

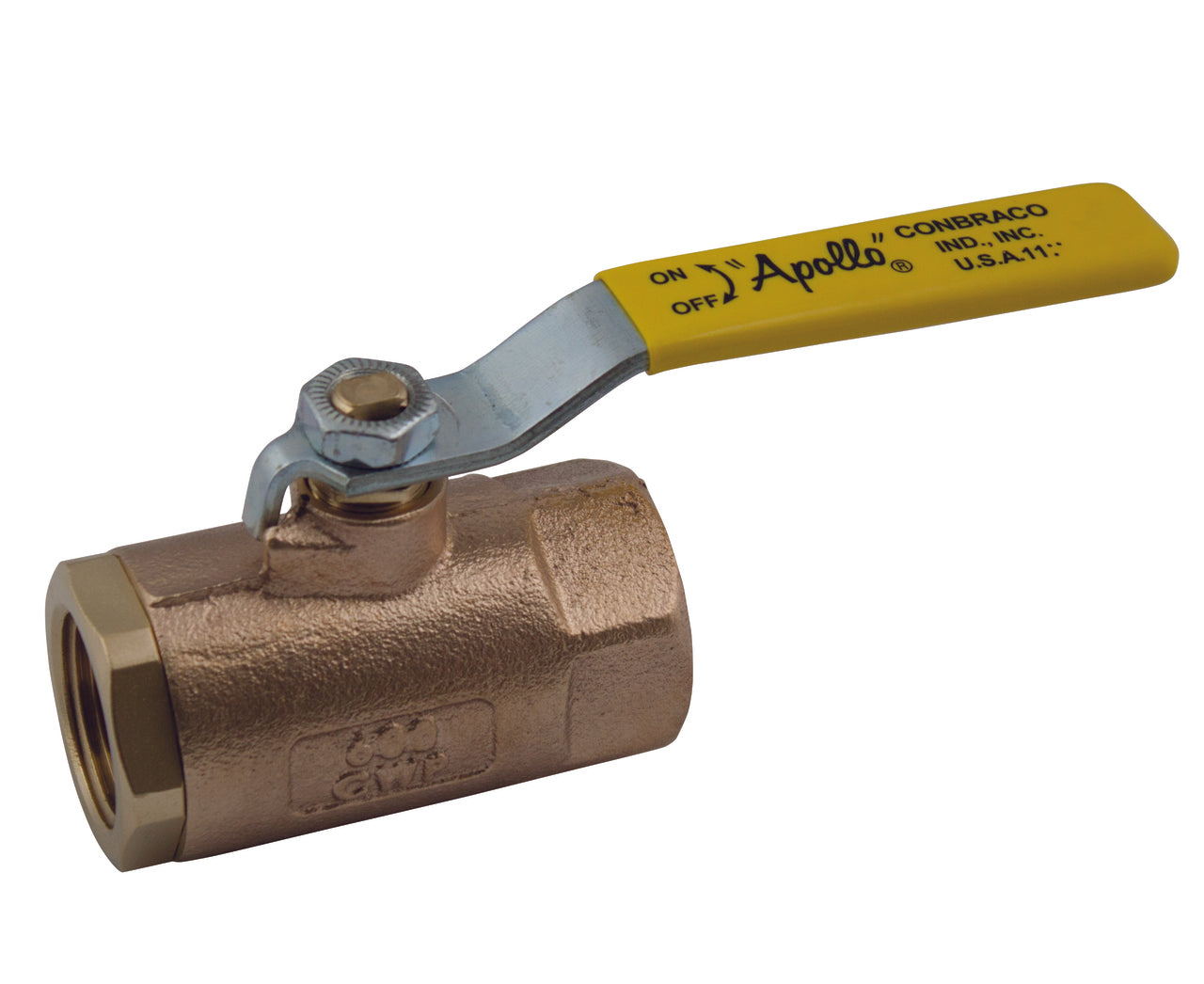

Conbraco 70-100-01 Apollo Brz Ball Valve 3 IN

Product Description

The CONBRACO 70-100-01 Apollo Brz Ball Valve is a 2-Piece In-Line Standard Ball Valve. It features FNPT connection, bronze body material, and a lever handle operator type. Designed for durability, it withstands a pressure rating of 600 PSI (CWP) and 150 PSI (SWP). Suitable for various applications with a temperature rating of -20 to 450 DEG F.

• 2-Piece In-Line Standard Ball Valve
• FNPT Connection
• Lever Handle Operator

Product Highlights

Durable bronze ball valve with reliable performance and broad temperature range.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-100-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 3 IN
• Connection Type: Threaded (FNPT x FNPT)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Stem and PTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 2.06 IN
• Lead Free: No
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• Flow Co-Efficient (Cv): 370
• Port Size: 3 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chromium Plated Ball
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 6.75 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 500 F
• Minimum Operating Temperature: -20 °F
• Item: Ball Valve
• Port: Standard
• Size: 3"
• Max. Pressure: 600 psi CWP, 150 psi SWP
• Handle Type: Lever
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• Material: Bronze
• End Style: FNPT
• Type: Ball Valve
• Series: 70-100
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Actuator Type: Lever Operated
• Domestic/Import: Domestic
• Inlet to Outlet Length: 6-3/4 in
• Media: Water
• Port Type: Standard
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 4.12 in
