Conbraco 62-103-01 Ss ball cone check valve 1/2 in

Product Description

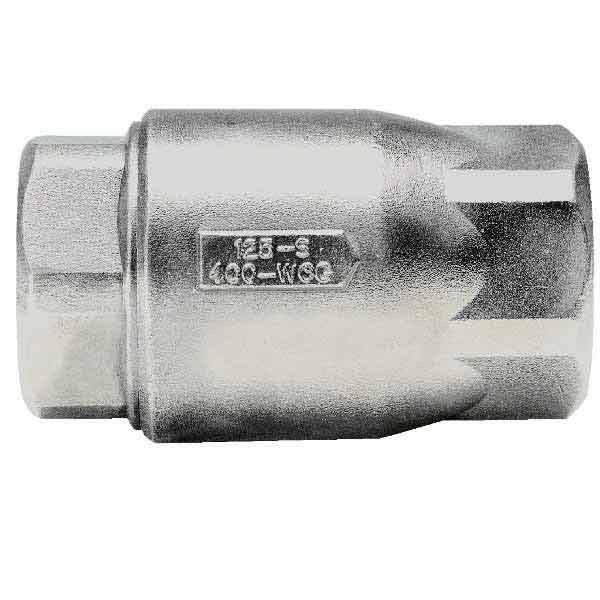

The CONBRACO 62-103-01 is an in-line ball cone check valve from the Series 62-100, featuring a stainless steel body and RPTFE ball check. This valve is designed for a 1/2 IN nominal size with FNPT connection type. Suitable for applications requiring a reliable one-way flow control with a maximum pressure of 400 PSIG (CWP) Non-Shock and 125 PSIG (SWP) at 350 DEG F.

• In-Line Ball Cone Check Valve
• Stainless Steel Body Material
• RPTFE Ball Check

Product Highlights

Stainless steel ball cone check valve with robust design and reliable performance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 62-103-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 62-100
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 400 PSIG (CWP) Non-Shock, 125 PSIG (SWP) At 350 DEG F
• Body Material: Stainless Steel
• Trim Material: RPTFE Ball Check
• Material Standard (Body): ASTM A351 Grade CF8M
• Industry Standards: ISO Certified, RoHS Compliant
• Width: 2.31 IN
• Height: 1.12 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 1.4
• Spring Material: Stainless Steel
• Pipe Size: 1/2"
• Cracking Pressure: 1/2 psi
• Retainer Material: Stainless Steel-ASTM A276, 316
• Ball Check Material: PPTFE (Reinforced Teflon)
• Guide Material: Stainless Steel-ASTM A276, 316
• Manufacturer: Apollo Valves
• End 1 Type: FNPT
• End 2 Type: FNPT
• Max. Temperature: 350°F
• Product Family: 62-100 Series
• Product Category: Valves
• Product Type: Check Valves
• Brand: Conbraco
• MPN: 62-103-01
• UPC: 670750633317
• End Connections: FNPT x FNPT
