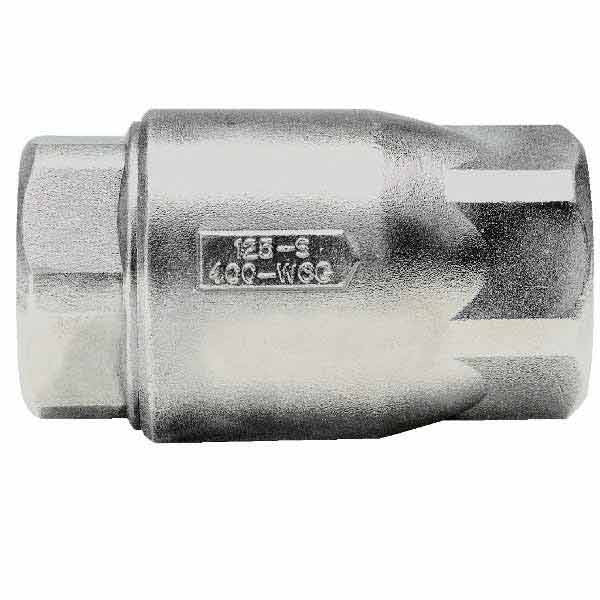

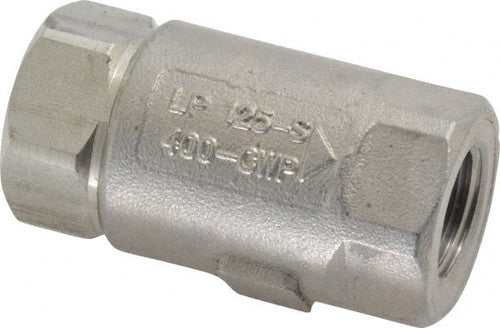

Conbraco 62-102-01 3/8 Ss Ball Cone Check Valve

Product Description

The CONBRACO 62-102-01 is a 3/8" in-line ball cone check valve with FNPT connection. Constructed with a stainless steel body and RPTFE ball check, this valve is designed for durability and reliability. It has a pressure rating of 400 PSIG (CWP) Non-Shock and 125 PSIG (SWP) at 350 DEG F. Suitable for various applications requiring a one-way silent check valve.

• In-Line Ball Cone Check Valve
• Stainless Steel Body Material
• RPTFE Ball Check

Product Highlights

This stainless steel check valve features a threaded FNPT x FNPT connection and is ideal for in-line applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 62-102-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 62-100
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 400 psig
• Body Material: Stainless Steel
• Trim Material: RPTFE Ball Check
• Material Standard (Body): ASTM A351 Grade CF8M
• Industry Standards: ISO Certified, RoHS Compliant
• Width: 2.12 IN
• Height: 1.12 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 1.21
• End Connections: FNPT x FNPT
• Item: Ball-Cone, Inline, One Way Silent Check Valve
• Pipe Size: 3/8"
• Cracking Pressure: 1/2 psi
• Retainer Material: Stainless Steel-ASTM A276, 316
• Ball Check Material: PPTFE (Reinforced Teflon)
• Guide Material: Stainless Steel-ASTM A276, 316
• End 1 Size: 3/8 in.
• End 1 Type: FNPT
• Max. Temperature: 350°F
• Product Family: 62-100 Series
• Product Category: Valves
• Product Type: Check Valves
• Valve Type: In-Line
• End Connection: FNPT x FNPT
• Crack Pressure (psi): 0.50
• Standards: RoHS Compliant
