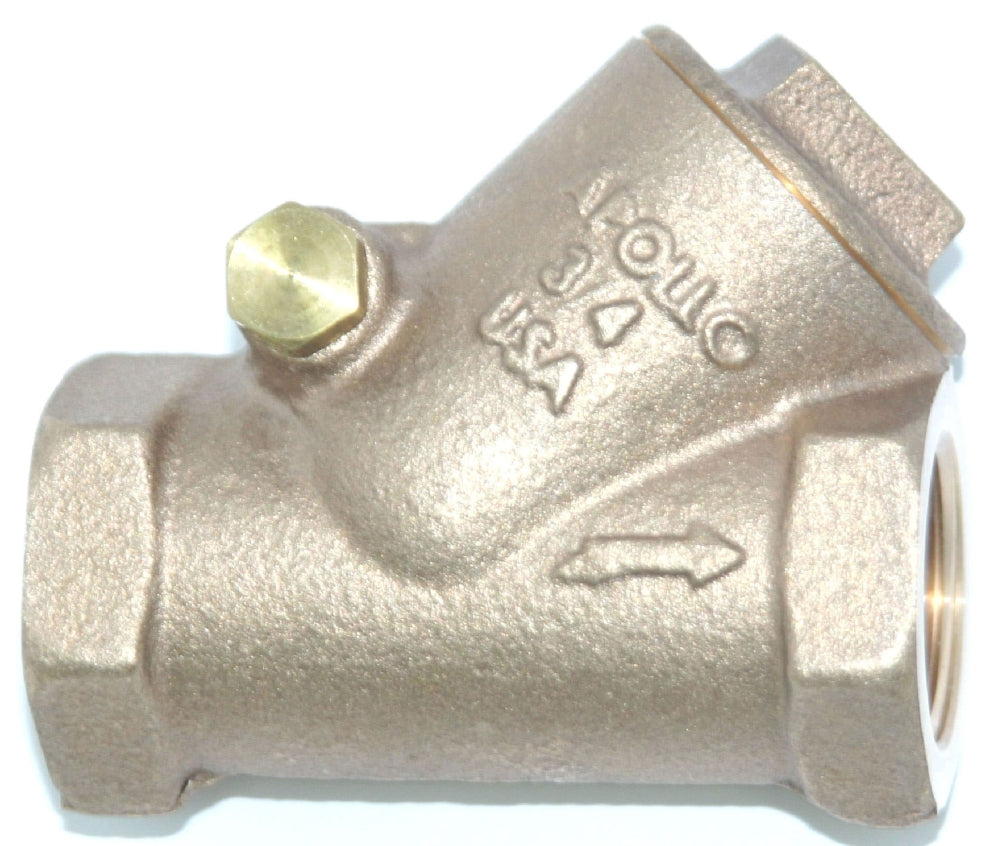

Conbraco 61Y-215-01 1 NPT x NPT 150 PSI SWP Swing Y-Pattern Check Valve

Product Description

The Conbraco 61Y-215-01 is a check valve designed for plumbing applications. It features a swing, Y-pattern design with a nominal size of one inch. This valve is ideal for commercial use and operates at a pressure rating of 150 PSI SWP and 300 PSI CWP.

• End connection is threaded x threaded.
• Body is made from ASTM B62 dezincification resistant bronze.
• Temperature rating ranges from negative twenty to four hundred six degrees Fahrenheit.

Product Highlights

This check valve is suitable for various plumbing systems, ensuring efficient flow control.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750608179

Technical Specifications

• Type: Swing, Y-Pattern
• Nominal Size: 1 Inch
• End Connection: Threaded x Threaded
• End to End Distance: 3.57 Inch
• Body Material: ASTM B62 Dezincification Resistant Bronze
• Disc Material: Bronze
• Cap Material: ASTM B62 Bronze
• Seat Material: ASTM B62 Bronze
• Temperature Rating: -20 to 406 Deg F
• Pressure Rating: 150 PSI SWP, 300 PSI CWP
• Application: Commercial
• Applicable Standard: ISO 9001, ASME B1.20.1, MSS-SP-80, ARRA
• Flow Rate: 28.6 Cv
