Product Description

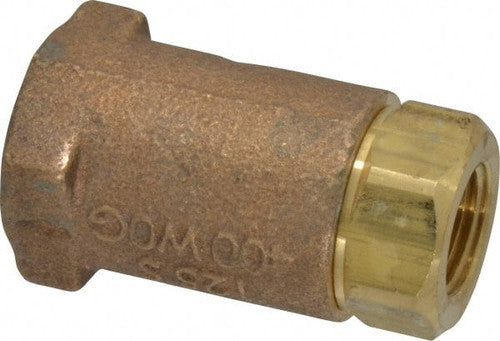

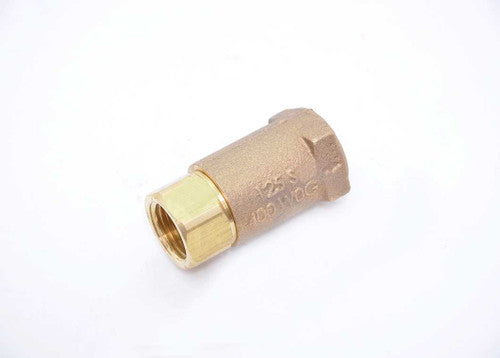

The CONBRACO 61-102-01 is a 3/8" in-line ball cone check valve with FNPT connections. It is designed for a pressure rating of 400 PSI at 100 degrees F, and 125 PSI steam at 350 degrees F. The valve features a cast bronze body and a brass stem with an RPTFE ball cone trim.
- In-Line Ball Cone Check Valve
- Cast Bronze Body Material
- ISO Certified, ARRA Compliant
Product Highlights
This check valve is suitable for various applications requiring reliable backflow prevention. Its straight-through design minimizes flow changes.
Product Information
Standard Information
-
Brand: CONBRACO
-
Manufacturer Part Number: 61-102-01
-
Country of Origin: United States
Technical Specifications
-
Nominal Size: 3/8 IN
-
Connection Type: FNPT
-
Pressure Rating: 400 PSI At 100 DEG F, 125 PSI Steam At 350 DEG F
-
Body Material: Cast Bronze
-
Stem Material: Brass
-
Trim Material: RPTFE Ball Cone
-
Body Material Specification: UNS C84400
-
Industry Standards: ISO Certified, ARRA Compliant, Canadian Reg. No: 0C11218.5C
-
Width: 2.12 IN
-
Height: 1.12 IN
-
Lead Free: No
-
Flow Co-Efficient (Cv): 1.21
-
End Connections: FNPT x FNPT
-
Item: Check Valve
-
Type: Inline, One Way, Silent Check Valve
-
Pipe Size: 3/8"
-
Max. Temp: 400F
-
Max. Pressure: 400psi @100F, 125psi steam @350F
-
Cracking Pressure: 1/2 psi
-
Ball Check: RPTFE, 15% Glass Filled
-
Steam Rating: 125 PSIG @ 350° F
-
Inlet/Outlet: 3/8" FNPT
-
Design: Straight-through
-
Valve Type: In-Line
-
Standards: CRN 0C11218.5C
-
Maximum Working Pressure: 400psi
-
Maximum Temperature (F): 406.00
-
Maximum Temperature (C): 176.60
