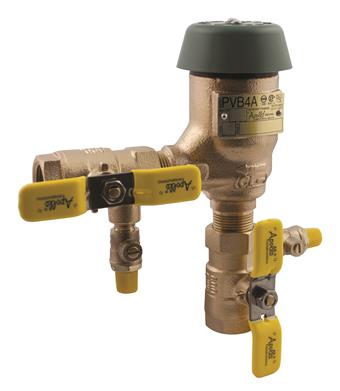

Conbraco 4ALF505A2F Apollo Bronze Pressure Vacuum Breaker with Ball Valves, SAE Threaded Test Cocks, 1 inches

Product Description

The CONBRACO 4ALF505A2F Apollo Bronze Pressure Vacuum Breaker prevents potable water contamination due to back-siphonage or backpressure. It features top-accessed modular check valve cartridges with captured springs, replaceable seats, and reversible silicone seat discs. Ball valve shutoffs with stainless steel handles and nuts are standard. Designed, cast, machined, assembled and tested in the USA.

• Low Pressure Loss
• Captured Spring Cartridge Check Valves
• Compact, Yet Easy to Maintain
• Ball Valve Shut-offs w/ SS Handles & Nuts Standard
• Top Access for Fast Testing & Maintenance
• Threaded Testcock Protectors
• Corrosion Resistant
• No Special Tools Required
• Chloramine-Resistant Elastomers
• Designed, Cast, Machined, Assembled and Tested in the USA

Product Highlights

This bronze pressure vacuum breaker features ball valves, SAE threaded test cocks, and a 1" connection, ensuring reliable backflow prevention.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 4ALF505A2F
• Country of Origin: USA

Technical Specifications

• article number with gtin: 4ALF505A2F (00670750108983)
• product number with gtin: 4ALF505A2F (00670750108983)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 4ALF50XA2F 4ALF50XA2F - Apollo Bronze Pressure Vacuum Breaker with Ball Valves, SAE Threaded Test Cocks (2 x FNPT)
• size: 1"
• materials: bronze
• finishing: none
• connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• product group: valves ()
• ETIM class: EC011469 Check valve
• brand: Apollo
• series: 4A Series Backflow Preventers
• product type: 4ALF50XA2F
• Housing material: Bronze
• Surface protection: Untreated
• Connections: Internal thread conical (NPT)
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Suitable for central heating water: No
• Certified according to SVGW for water: No
• Certified according to SVGW for gas: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Backflow Type: Pressure Vacuum Breaker
• Body Material: Bronze
• Nominal Size: 1 in
• Manufacturer #: 4ALF505A2F
• Pressure Rating: 150 psi
• Temperature Rating: 33 to 140 deg F
• Working Pressure: 150 PSI
• Material: Bronze, Lead-Free
