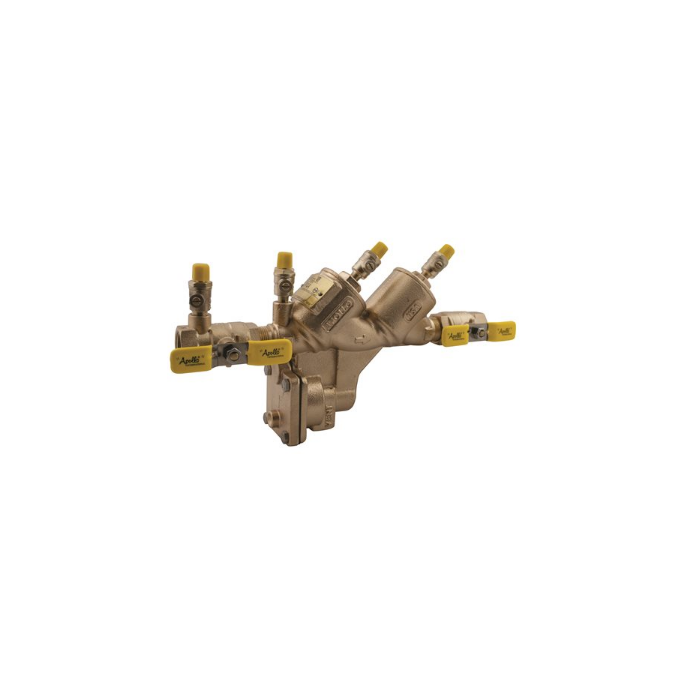

Conbraco 4ALF207A2F 1-1/2 inches Reduced Pressure Backflow, Lead-Free Bronze with Ball Valves

Product Description

The CONBRACO 4ALF207A2F is a 1-1/2" reduced pressure backflow preventer, featuring a lead-free bronze construction and ball valves. Designed to protect potable water supplies from back-siphonage or backpressure, this device includes top-accessed modular check valve cartridges with captured springs and replaceable seats. It is suitable for horizontal installation.

• Lead-free bronze body
• Equipped with ball valve shutoffs with stainless steel handles and nuts
• Features top-mounted test cocks for easy testing

Product Highlights

This backflow preventer ensures potable water safety with its robust design and easy maintenance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 4ALF207A2F

Technical Specifications

• MPN: 4ALF207A2F
• Manufacturer Part Number: 4ALF207A2F
• UPC / GTIN: 670750111280
• Manufacturer: Conbraco
• Product Type: Reduced Pressure
• Material: Bronze
• Thread Size: 1-1/2 in
• Maximum Working Pressure: 175psi
• Minimum Working Temperature: 33 F
• Maximum Working Temperature: 180 F
• For Use With: Potable Water Application
• Lead Free: Yes
• Series: 4A-200
• Standards: ASSE 1013-2011, AWWA C511, CSA B64.4, NSF/ANSI 372, NSF/ANSI 61
• Backflow Type: Reduced Pressure
• Body Material: Bronze
• Domestic / Import: Domestic
• Nominal Size: 1-1/2 in
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 deg F
