Conbraco 41-180-01 1/8 200 PSI Tee Hdl Double

Product Description

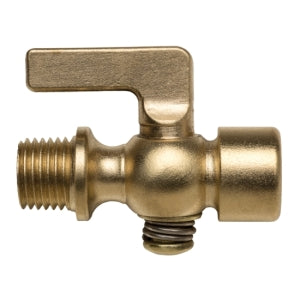

The CONBRACO 41-180-01 is a brass tee handle standard spring bottom air cock with a 1/8 IN nominal size and MNPT connection. It is an economical way to shut-off air lines. The standard spring bottom (-01) with 5/32 IN port are tested at 80 PSIG.

• An economical way to shut-off air lines.
• Standard spring bottom (-01) with 5/32 IN port are tested at 80 PSIG.
• Standard spring bottom (5/32 IN port)

Product Highlights

The CONBRACO 41-180-01 air cock features a tee handle, MNPT connection, and a maximum pressure rating of 200 PSIG. Its standard satin brass finish and spring bottom design make it suitable for various pneumatic applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 41-180-01

Technical Specifications

• Connection Type: MNPT
• Pressure Rating: 200 PSIG
• Nominal Size: 1/8 IN
• Operator Type: Tee Handle
• Temperature Rating: 500 DEG F
• Body Material: Brass
• Finish/Color: Standard Satin
• Item Name: Air Cock
• Lead Free: No
• Series/Model: Series 41
• Type: Standard Spring Bottom
