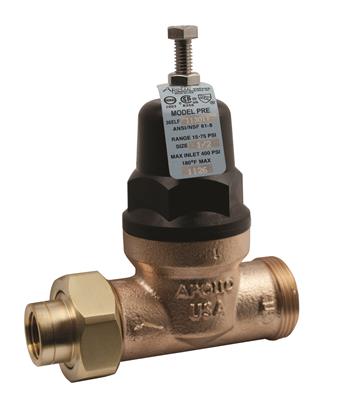

Conbraco 36ELF11401T Apollo Direct Acting Water Pressure Reducing Valve 15-75 psi 3/4 inches (Union FNPT x FNPT)

Product Description

The CONBRACO 36ELF11401T Apollo Lead Free Pressure Reducing Valve conserves water and protects water distribution systems by automatically reducing elevated supply pressures. The valve features a dezincification resistant bronze body and a stainless steel adjusting screw. It has a control pressure range of 15 to 75 psi and is factory tested and preset at 60 psi.

• Balanced Piston Design
• SS Adjusting Screw & Nut
• Sealed Cage for Vault Installations

Product Highlights

This valve is designed for easy in-line servicing with simple cartridge removal and includes a built-in thermal expansion bypass.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 36ELF11401T
• Country of Origin: United States

Technical Specifications

• DN1: 3/4"
• d2: 26.7
• DN2: 3/4"
• Max operating pressure liquid: 400 psi
• Min. medium temperature: 33 °F
• Max medium temperature: 180 °F
• Peak medium temperature: 180 °F
• ETIM class: EC010122 Pressure reducing valve
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter connection 1: 3/4 inch (20)
• Outer pipe diameter connection 1: 26.67mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: 3/4 inch (20)
• Outer pipe diameter connection 2: 26.67mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Connection 2: Internal thread conical (NPT)
• Max. inlet pressure: 27.56bar
• Max. inlet pressure (imperial): 400psi
• With pressure gauge: No
• Suitable for liquids: No
• Suitable for steam: No
• Suitable for gases: No
• Height: 5.75"
• OEM: Apollo Valves (a Conbraco Company)
• OEM #: 36ELF11401T
• Connection Type: Single Union FNPT
• Country of Origin: USA
• Length: 4-1/2 in
• Material: Lead Free Bronze
• Pipe Size: 3/4 in
• Preset Pressure Settings: 50 psi
• Pressure Adjustment Range: 15 to 75 psi
• Standards: Annex F & G, ARRA, ASSE 1003-2009, CSA B356, NSF 372, NSF/ANSI 61-G
• Strainer: No
• Valve Type: Standard
