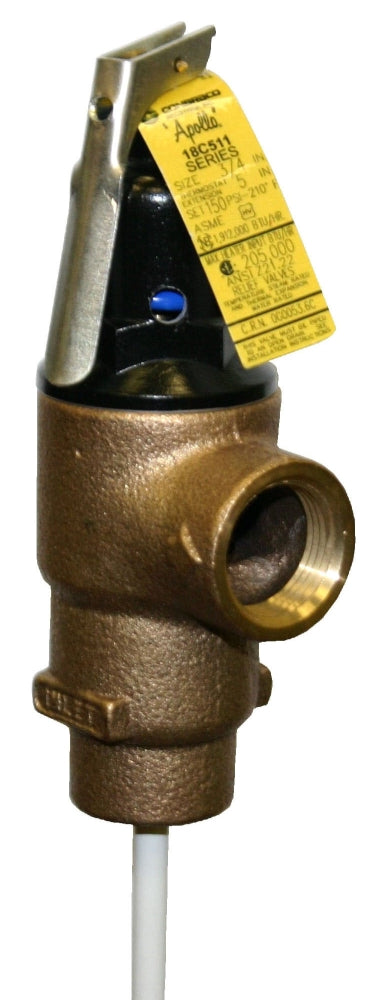

Conbraco 18C5118150 3/4 Inch Automatic Safety Relief Valve 150 PSIG 1912000 BTU/Hr

Product Description

The Conbraco 18C5118150 is a 3/4 inch automatic safety relief valve designed to ensure safe operation of high-capacity commercial hot water heaters and storage tanks. This valve is made from ASTM B584 bronze and has a set pressure range of 150 PSIG.

• Automatic operation
• Made from ASTM B584 bronze
• Set pressure range: 150 PSIG

Product Highlights

This Conbraco valve offers reliable, automatic safety relief for commercial water heaters and storage tanks. It is corrosion-resistant and made in the USA.

Product Information

Standard Information

• Manufacturer: Conbraco
• MPN: 18C5118150
• UPC: 670750121524

Technical Specifications

• Type: Automatic
• Inlet Size: 3/4 inch
• Outlet Size: 3/4 inch
• End Connection: Male Threaded x Female Threaded
• Body Material: ASTM B584 Bronze
• Spring Material: 304 Stainless Steel
• Seal Material: ASTM B16 Brass
• Disc Material: Silicone
• Set Pressure Range: 150 PSIG
• Temperature Rating: 210 degrees F
• Inclusions/Features: 302 Stainless Steel Pin Element, Nylon Coating Tube Element
• Application: Water Heater, Storage Tank, Commercial
• Applicable Standard: CSA (Canada and US), ANSI Z21.22, ISO 9001, HV, NB, CRN 0G1438.6C
• Element Length: 4.38 inches
• Capacity: 20500 BTU/Hour (CSA), 1912000 BTU/Hour (ASME)
