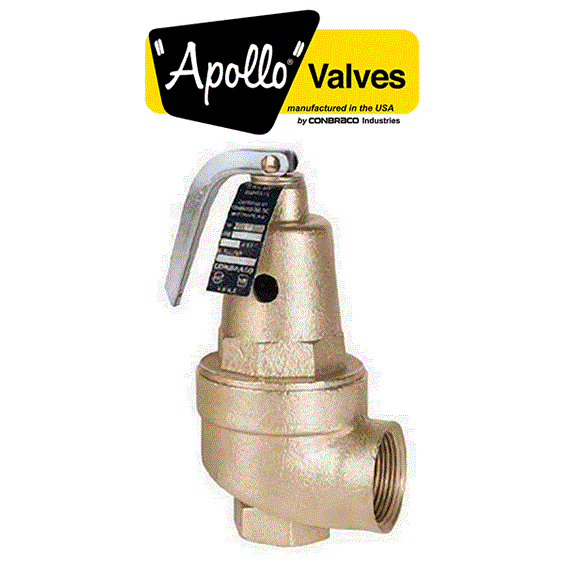

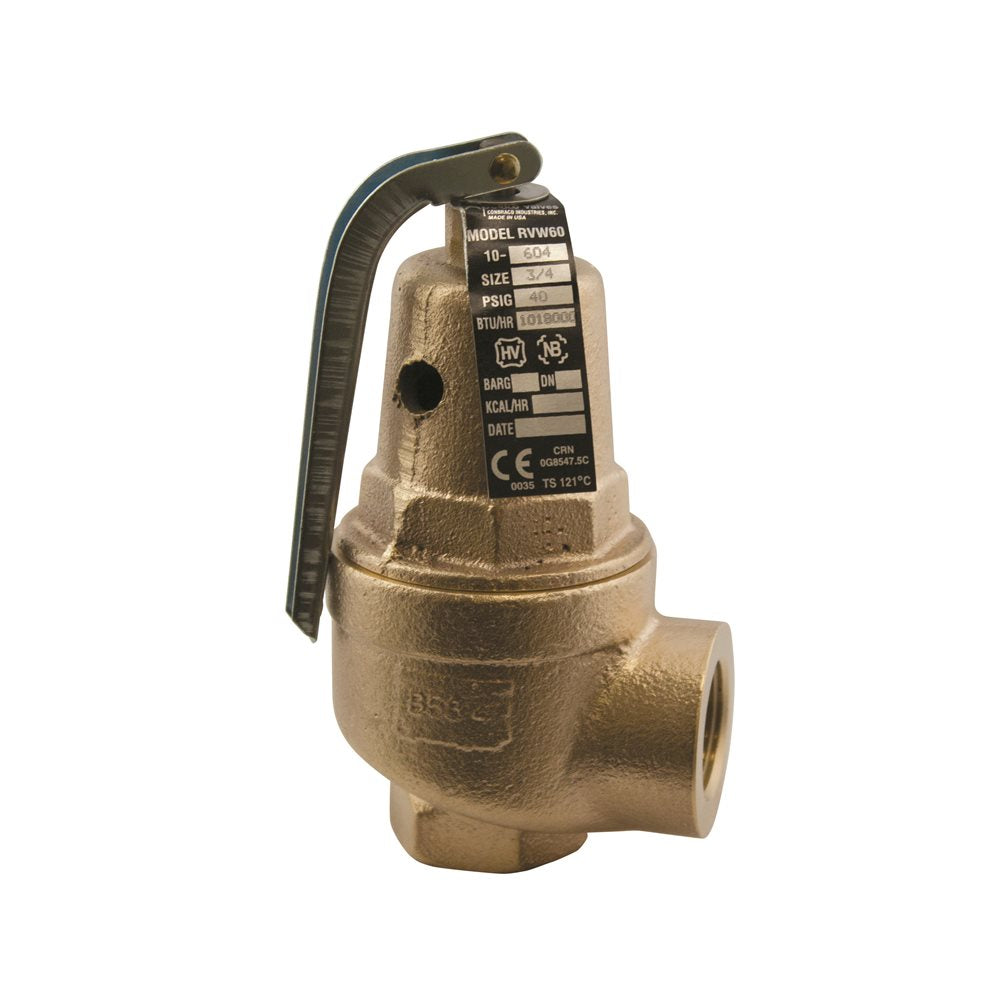

Conbraco 10-616-34 Hot Water Relief Valve

Product Description

The Conbraco Hot Water Relief Valve, MPN 10-616-34, is designed to provide safety and protection for hot water heating boilers. This ASME Section IV certified valve ensures reliable operation and can be pre-set to pressure levels between fifteen and one hundred sixty pounds per square inch (psig) at a maximum temperature of two hundred fifty degrees Fahrenheit (250°F).

• Capacity certified for hot water heating systems
• Adjustable pressure setting from 15 to 160 psig
• Constructed to handle temperatures up to 250°F

Product Highlights

Ideal for various hot water applications, this valve is essential for maintaining system safety and efficiency.

Product Information

Standard Information

• Brand: Conbraco
• MPN: 10-616-34

Technical Specifications

• Service: Sec IV Hot Water
• Capacity: 10,234,000 BTU
• Inlet Type: Female
• Item Weight: 7.55 lbs per EA
• Outlet Type: Female
• Setting (PSI): 150
• Inlet Size (NPT): 1-1/4 inches
• Outlet Size (NPT): 1-1/2 inches
