Product Description

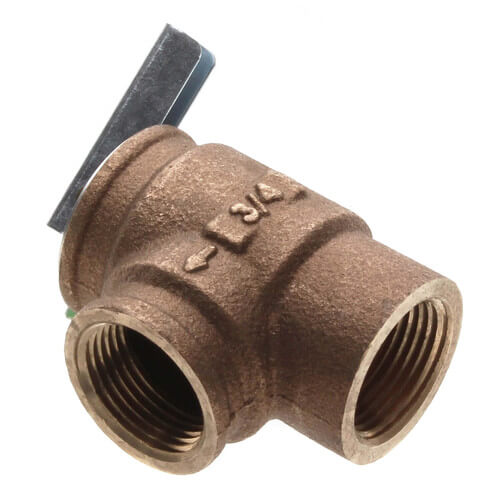

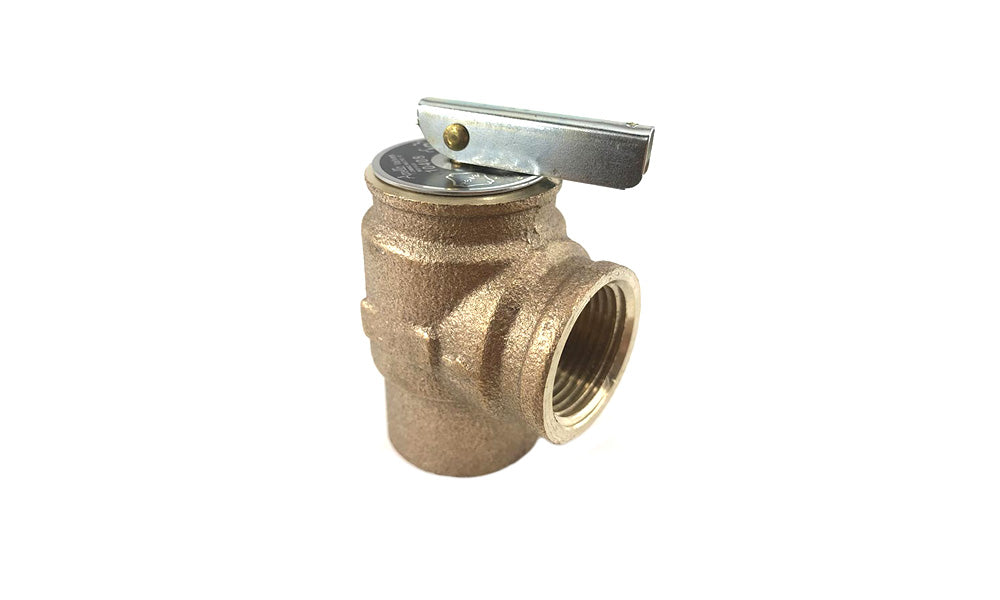

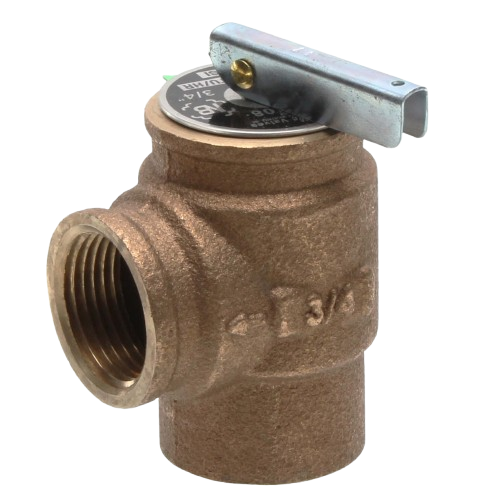

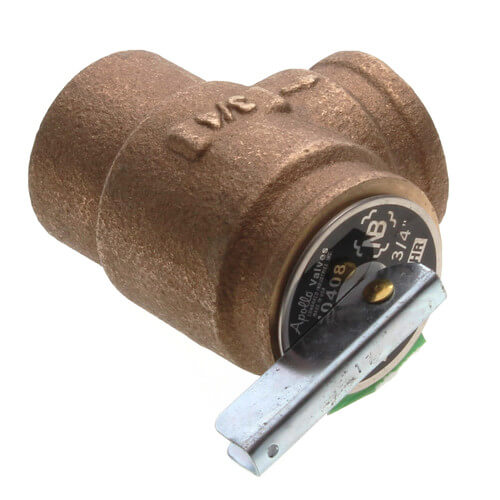

The CONBRACO 10-408-05 is a capacity-certified relief valve that protects against excessive water pressure and steam. It complies with ASME Section IV requirements and is ideal for use with hot water boilers and heating systems. The valve has a 3/4" female NPT inlet and outlet and is set to relieve at 30 PSI with a BTU capacity of 535,000.
- 3/4" female NPT inlet and outlet for versatile installation.
- Factory-set to relieve at 30 PSI, safeguarding hot-water boiler systems from over-pressure.
- Certified capacity to handle up to 535,000 BTU/h.
Product Highlights
This relief valve is designed for safe, reliable operation in residential and commercial hydronic systems.
Product Information
Standard Information
-
Brand: CONBRACO
-
Manufacturer Part Number: 10-408-05
Technical Specifications
-
Size: 3/4"
-
Outlet Type: FNPT
-
BTU: 535000
-
Inlet Type: FNPT
-
Max Pressure (PSIG): 30
-
Max Temp (F): 250°F
-
Material: Brass
-
Inlet: 3/4" Female NPT
-
Outlet: 3/4" Female NPT
-
Set Pressure: 30 PSI
-
Capacity: 535,000 BTU
-
Maximum Temperature: 250 degrees F
-
ASME: Section IV
-
Body Material: Bronze
-
Domestic / Import: Domestic
-
End Style: FNPT x FNPT
-
Nominal Size: 3/4 in
-
Pressure Rating: 30 psi
-
Handle Style: Lever
-
Manufacturer: Apollo Conbraco
-
Manufacturer #: 10-408-05
-
Media: Water
-
Series: 10-400
-
Temperature Rating: 250 deg F
-
Trim Material: BRASS
-
Type: Uni-Body
