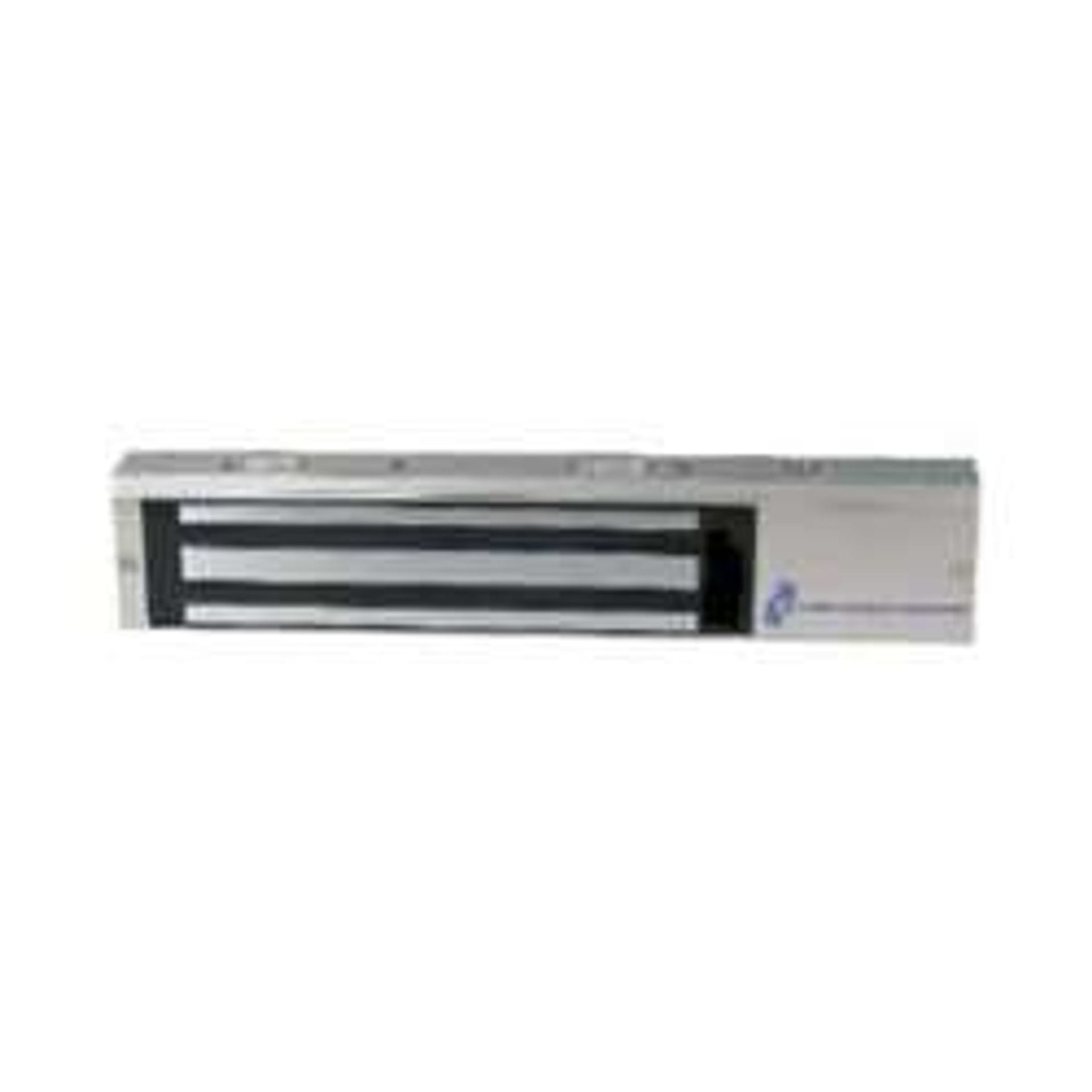

Component Manufacturing Corporation 1200S Alarm Controls Single Magnetic Lock

Product Description

The Component Manufacturing Corporation 1200S is a single magnetic lock that is crucial for access control systems. This product offers a holding force of twelve hundred pounds, providing secure locking for both single and double doors. The innovative E-Z mount system allows for straightforward installation without the need for special tools. It is ideal for high-traffic areas and suitable for indoor applications, ensuring effective traffic control.

• Provides a holding force of 1200 lbs
• Easy installation with E-Z mount system
• Compatible with any access control system

Product Highlights

The 1200S magnetic lock supports a jumper selectable voltage of either twelve or twenty-four VDC, enhancing its compatibility with various access control systems.

Product Information

Standard Information

• Brand: Component Manufacturing Corporation
• MPN: 1200S

Technical Specifications

• Holding Force: 1200 lbs
• Operating Voltage: 12 or 24 VDC, jumper selectable
• Current Draw @ 12 VDC: 505 mA
• Current Draw @ 24 VDC: 260 mA
• Magnet Size: 10 1/2 inches L x 2 7/8 inches H x 1 1/2 inches W
• Armature Size: 7 3/8 inches L x 2 3/8 inches W x 9/16 inches D
• Operating Temperature: +14 to +131F [-10 to +55C]
