Ranco O12-4834 Dual Function Pressure Control 10 Hg-100 psi In 150-450 psi Out

Product Description

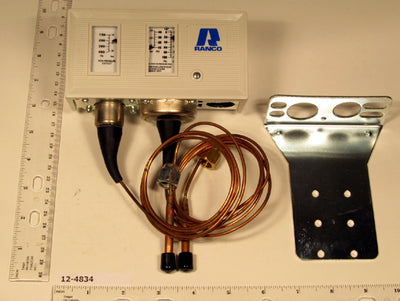

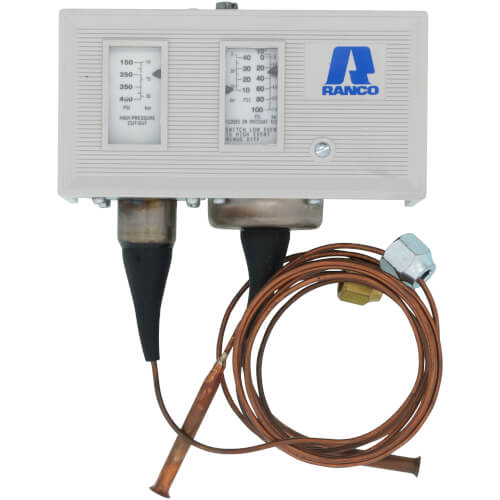

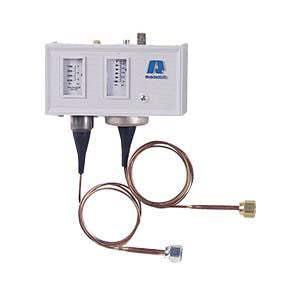

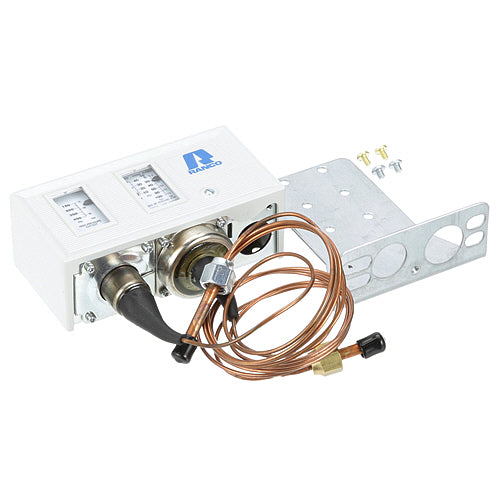

The Ranco O12-4834 is a dual function pressure control designed for air conditioning and refrigeration applications. It combines low pressure and high pressure functionality into one control. Key specifications include a low pressure range of ten to one hundred psi and a high pressure range of one hundred fifty to four hundred fifty psi.

• Low pressure differential range: ten to forty psi
• Automatic reset for low pressure and manual or automatic reset for high pressure
• Capillary length of forty-eight inches with a flare nut connection

Product Highlights

This product is suited for use with refrigerants including R12, R22, and R502. It features a NEMA one enclosure and provides universal mounting options.

Product Information

Standard Information

• Brand: Ranco
• MPN: O12-4834

Technical Specifications

• Low Pressure Range: 10 to 100 psi
• High Pressure Range: 150 to 450 psi
• Pressure Differential: 10 to 40 psi
• Electrical Rating: 24/240 V
• Capillary Length: 48 inches
• Connection Type: 1/4 inch SAE flare nut
• Type: SPST
• Weight: 2.16 lbs
