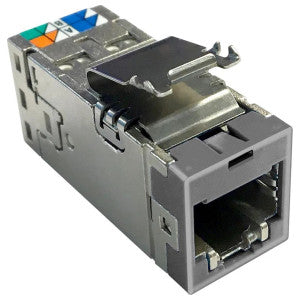

CommScope Uniprise 760238140 SLX Series Modular Jack Gold Grey Cat 6 RJ-45 1-Port T568A/B

Product Description

The CommScope Uniprise 760238140 is a modular jack designed for Cat 6 applications. It is shielded and features a four-pair design without a dust cover. This modular jack fits all existing SL panels and faceplates, making it an ideal choice for network installations.

• Compatible with SL series termination tool
• Universal latch for secure attachment
• Available in nine different color options with replaceable caps

Product Highlights

The SLX series modular jack is suitable for various network configurations and offers easy re-termination capabilities with a universal wiring label.

Product Information

Standard Information

• Brand: CommScope Uniprise
• Part Number: 26366485

Technical Specifications

• Compatible cable diameter, maximum: 0.33 inches
• Compatible insulated conductor diameter, maximum: 0.063 inches
• Depth: 1.45 inches
• Height: 0.64 inches
• Width: 0.57 inches
• Transmission standard: ANSI/TIA-568-C.2 and ISO/IEC 11801 Class E
• Operating temperature: -10 °C to +60 °C (+14 °F to +140 °F)
• Cable type: Shielded
