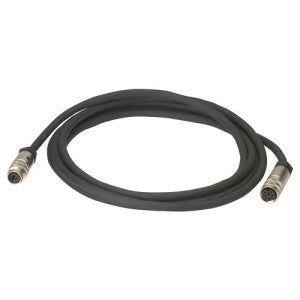

CommScope ATCB-B01-005 AISG Standard Cable Straight 8-Pin DIN Female to 8-Pin DIN Male 300V 6 Conductor 5 m Black

Product Description

The CommScope ATCB-B01-005 is an AISG standard cable designed for connecting devices. This cable features an eight-pin DIN configuration. The product is ideal for various applications requiring reliable data and power transfer.

• Conforms to AISG 1.1 and AISG 2.0 protocols
• Operates within a temperature range of negative forty to seventy degrees Celsius
• Designed for control cable applications

Product Highlights

This cable is suitable for use in harsh environments, with compliance to CE and ROHS standards.

Product Information

Standard Information

• Brand: CommScope
• Manufacturer: CommScope

Technical Specifications

• Data Conductor Type: 0.24 mm² (24 AWG) Twisted Pair
• Power Conductor Type: 0.82 mm² (18 AWG) Stranded
• Protocol: AISG 1.1 | AISG 2.0
• Operating Temperature: -40 to +70 °C
• Country of Origin: CN - China
• Connector Configurations: 8-Pin DIN Female to 8-Pin DIN Male
• Length: 5 m
• Cable Type: Control Cable
