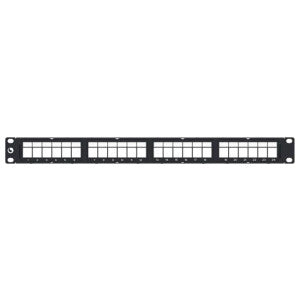

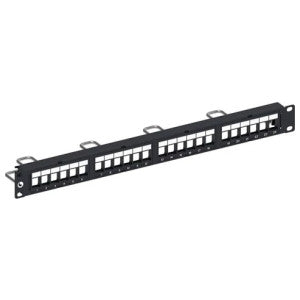

CommScope 760237052 Discrete Distribution Module Panel Thermoplastic and Steel Black 24-Port Cat 5e/Cat 6/Cat 6a 1U Loaded 19 in Rack Mount

Product Description

The CommScope discrete distribution module (DDM) panels are designed for structured cabling management. This model includes 24 ports and supports Cat 5e, Cat 6, and Cat 6a configurations. The assembly features a rack-mounted base unit that allows for straightforward installation in standard infrastructure.

• Available in straight, angled, or recessed angled configurations.

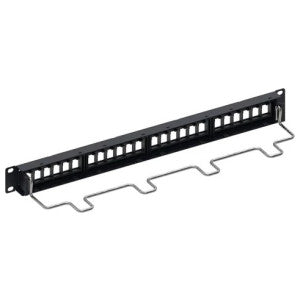

• Comes with rear cable management hardware.
• Status labels are included for easy port numbering.

Product Highlights

This distribution module provides efficient management and organization of network cables.

Product Information

Standard Information

• Brand: CommScope Uniprise
• Manufacturer: CommScope Uniprise

Technical Specifications

• Depth with cable management: 4.70 inches
• Maximum diameter over dielectric: 0.046 inches
• Minimum diameter over dielectric: 0.030 inches
• Height: 1.75 inches
• Width: 19.00 inches
• ANSI/TIA category: 5e, 6, 6A
• Flammability rating: UL 94 V-0
• Operating temperature: -10 °C to +60 °C
• Storage temperature: -40 °C to +70 °C
• Panel style: Straight
• Material type: High-impact, flame retardant thermoplastic, powder-coated steel
• ISO certification: ISO 9001:2015
