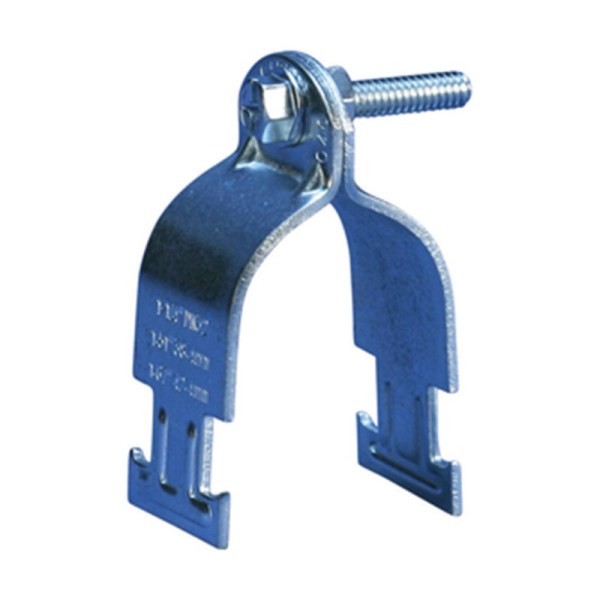

Commercial USC152EG Universal Strut Clamp For Pipe/Conduit 6.1in OD

Product Description

The COMMERCIAL USC152EG is a universal strut clamp designed for pipe and conduit with a 6.1in outer diameter. Constructed from steel with an electrogalvanized finish, this clamp provides secure support in various applications. It has a static load capacity of 900 lb and conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 59).

• Consists of two clamps, nut and bolt
• Fits into open side of strut channel
• Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 59)

Product Highlights

Universal strut clamp for pipe and conduit with a 6.1in outer diameter. Made of steel with electrogalvanized finish.

Product Information

Standard Information

• Brand: COMMERCIAL
• Manufacturer Part Number: USC152EG

Technical Specifications

• Brand: nVent Caddy
• Part Number: USC152EG
• Material: Steel
• Finish: Electrogalvanized
• Outer Diameter: 5.870 – 6.100
• Width: 1 1/4
• Thickness: 11 GA
• Static Load: 900 lb
