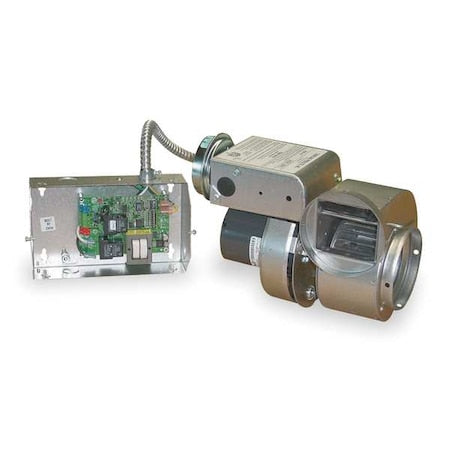

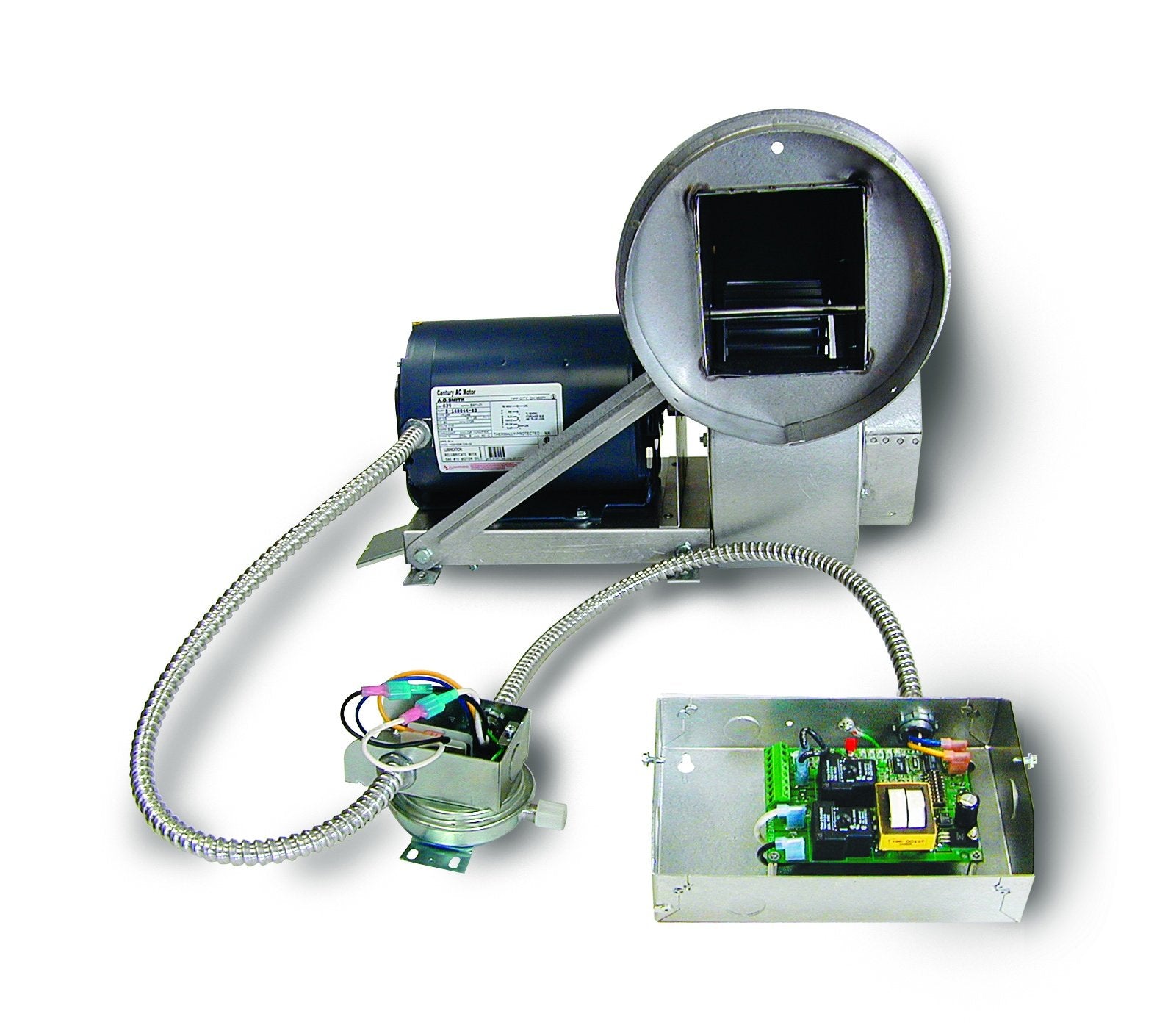

Tjernlund HS3 Gas Sidewall Power Venter Fan 115V

Product Description

The Tjernlund HS3 Gas Sidewall Power Venter Fan is used for side wall venting commercial natural gas or LP fired equipment such as boilers, water heaters, and unit heaters. This model features a UC1 Universal Control and a diaphragm Fan Proving Switch for safety interlock, which shuts down heating equipment if venting malfunctions occur.

• Side wall vent systems save time and money and are ideal for renovations and new construction.
• Includes UC1 Interlock Control and PS1505 Fan Prover Switch.
• Capacities up to 250,000 BTU/hr.

Product Highlights

Side wall venting saves on costly materials and labor, especially on tall building runs. Proven safety interlocks ensure proper exhaust, a feature not always present in conventional chimneys.

Product Information

Standard Information

• Brand: Tjernlund
• MPN: HS3
• Application: Side wall venting commercial natural gas or LP fired equipment including boilers, water heaters, and unit heaters

Technical Specifications

• Maximum Vent Pipe Diameter: 10 inches
• Minimum Vent Pipe Diameter: 8 inches
• Maximum Heater BTU Input for Gas Appliance: 700,000 BtuH
• Current: 2.57 A
• Voltage: 115V AC
• Maximum Motor Speed: 1,600 RPM
• Material: Aluminized Steel Housing
• Includes: Adjustable Damper, Fan Proving Switch, UC1 Interlock Control, Vibration Isolators
• Standard Compliance: ETL Listed to UL 378
• Country of Origin: United States
