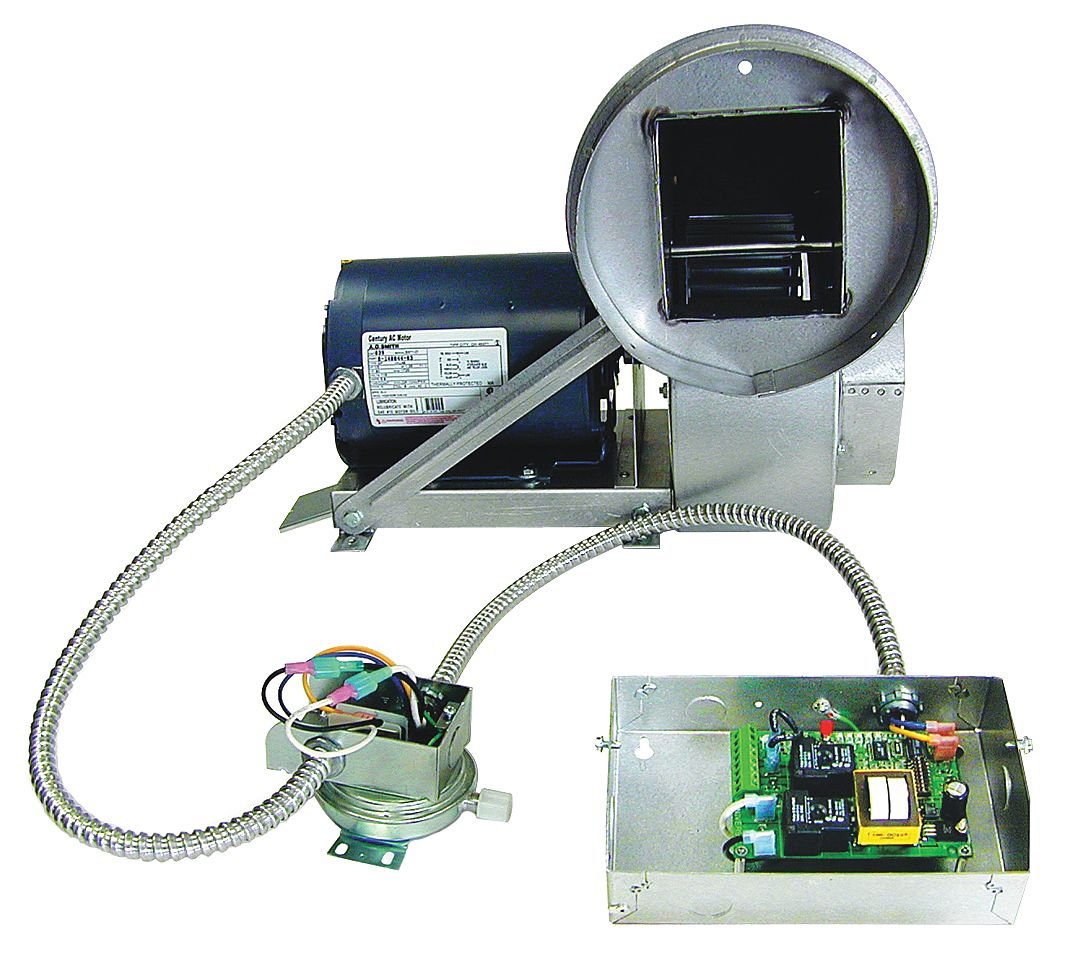

Tjernlund HS4 Gas Sidewall Power Venter Fan

Product Description

The Tjernlund HS4 Gas Sidewall Power Venter Fan is designed for sidewall venting of commercial natural gas or LP-fired equipment such as boilers, water heaters, and unit heaters. This unit features the UC1 Universal Control and a diaphragm Fan Proving Switch for safety, ensuring that the heating equipment shuts down if a venting malfunction occurs. The UC1 Universal Control includes adjustable pre and post-purge settings, LED status/diagnostic indicators, and fan proving switch monitoring. It interlocks with any 24-120 VAC burner control circuit and includes a dry contact actuation option.

• Side wall vent systems save time and money.
• Saves costly materials and labor.
• Safety interlocks assure proper exhaust.

Product Highlights

Tjernlund HS4 Gas Sidewall Power Venter Fan is perfect for sidewall venting in commercial settings. It is equipped with advanced controls for safety and efficiency.

Product Information

Standard Information

• Manufacturer: Tjernlund Products
• Brand: Tjernlund
• Model: HS4
• UPC: 080956216090

Technical Specifications

• Maximum Vent Pipe Diameter: 12 inches
• Minimum Vent Pipe Diameter: 8 inches
• Maximum Heater BTU Input for Gas Appliance: 1,200,000 BtuH
• Nameplate Voltage: 115V AC
• Current: 5.8 A
• Maximum Motor Speed: 1,725 RPM
• Power Consumption: 700 W
• Housing Material: Steel
