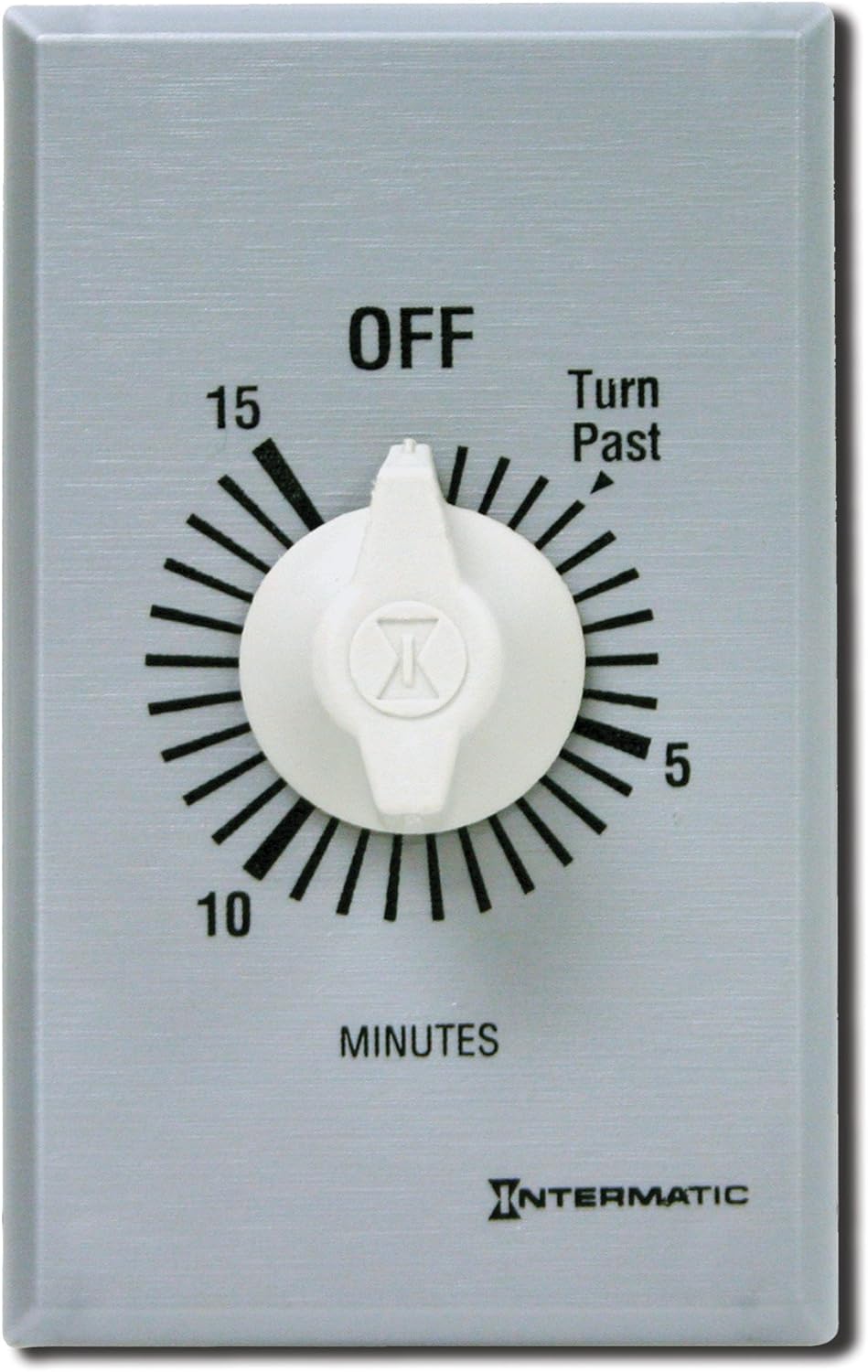

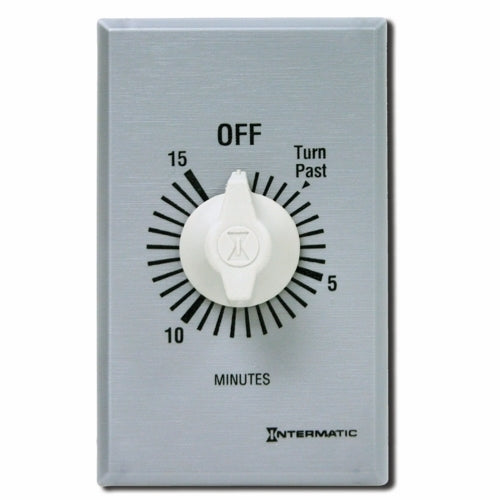

Intermatic FF315M 15 Minute SPDT Countdown Timer 125 to 277 VAC 60 Hz Single-Pole Double-Throw

Product Description

The Intermatic FF315M is a reliable and efficient 15-minute countdown timer designed to replace any standard wall switch. Ideal for controlling fans, lighting, motors, and heaters, this timer helps in managing the on times of various loads without needing electricity to operate.

• Energy-efficient design that operates without electricity.
• Commercial grade with a brushed metal look, ensuring durability and compliance with NEC requirements.
• Simple installation with teeter-type terminal connections.

Product Highlights

This timer features a rugged time dial plate that withstands high-traffic commercial environments and a manual override function for immediate shut-off control. It is designed for a wide range of applications from indoor lighting to HVAC systems.

Product Information

Technical Specifications

• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Contact Rating: 7 AMP at 125 VAC (Tungsten), 20 AMP at 125 VAC (Resistive), 10 AMP at 250/277 VAC (Resistive)
• Mounting Type: Wall Mount
• Electrical Connections: Teeter Type
• Voltage: 125-277 VAC
• Action: Single-Pole Double-Throw (SPDT)
• Standards: CSAus Certified, UL Listed, UL Recognized, HVACR, NEC
