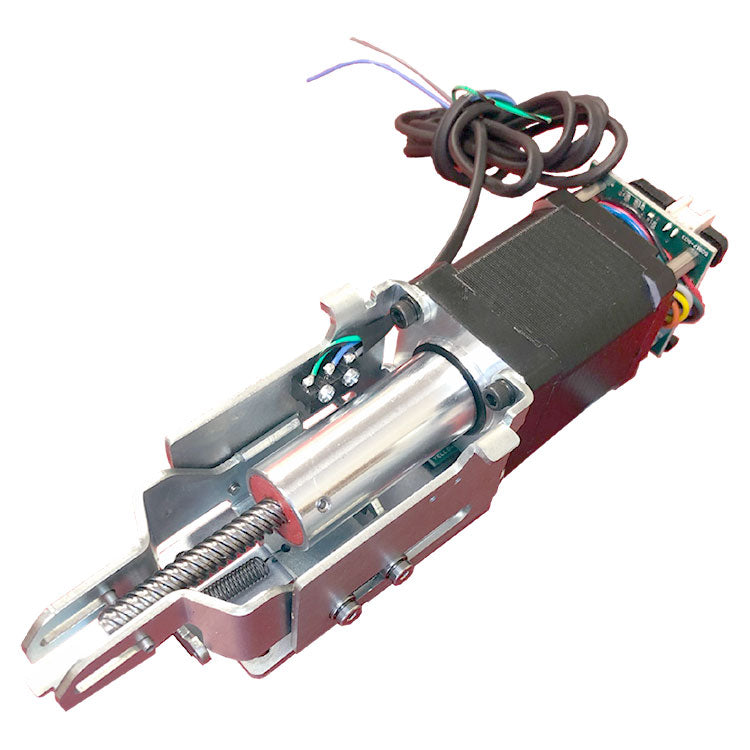

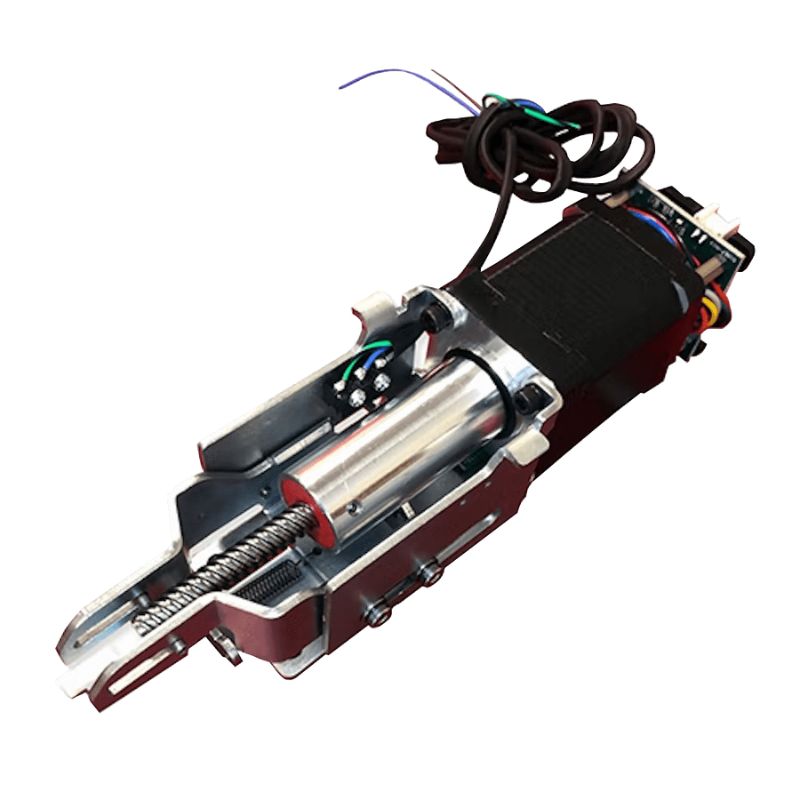

Command Access Technologies MLRK1-VD Motorized Latch Retraction Kit for Von Duprin 33/35 & 98/99 Series Exit Device

Product Description

The Command Access Technologies MLRK1-VD is a reliable solution for converting Von Duprin 33/35 and 98/99 series exit devices to motorized latch retraction. This kit is designed for easy field installation and includes a built-in request to exit feature for enhanced functionality. The product incorporates push-to-set technology allowing for straightforward adjustments after installation. The VD configuration enhances the overall efficiency with an upgraded MM5 module.

• Motor-driven latch retraction for convenient access
• Cost-effective solution for upgrading security systems
• Compatible with Von Duprin 33/35 and 98/99 series devices

Product Highlights

This motorized latch retraction kit is ideal for commercial applications, ensuring smooth operation and easy integration into existing systems.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: MLRK1-VD

Technical Specifications

• Installation: Commercial
• Limited Warranty: 3 Years
• Application: Von Duprin 33/35 & 98/99 Series Exit Device
• Operating Voltage: 24 VDC
• Wireless: No
• Function: Electric Latch Retraction
• Input Voltage: 24 Volts DC Intermittent Duty
• Locking State: Fail-Secure (Power to Unlock)
• Product Type: Exit Device Accessory
• Sales Category: Exit Device Accessory
• Voltage Range: 24 to 28 VDC
• System Protection: Unit shutdown when voltage exceeds 28 VDC
• Standard: Average current peak: 900mA, average current hold: 215mA
• PTS Adjustment: Approx. 1/4 inches
• Wire Run: 300 feet with 18 gauge wire
• Cutdown Details: 36 inches/48 inches - 6.5 filler plate needed
• Request to Exit: Built-in to all units (VDREXKIT-ED)
• Part Type: Electric Latch Retraction Kit
• Compatible Devices: 98/99 and 33A/35A Series rim, mortise, and vertical rod exit devices
• Compliance: Meets Buy American Act (BAA)
