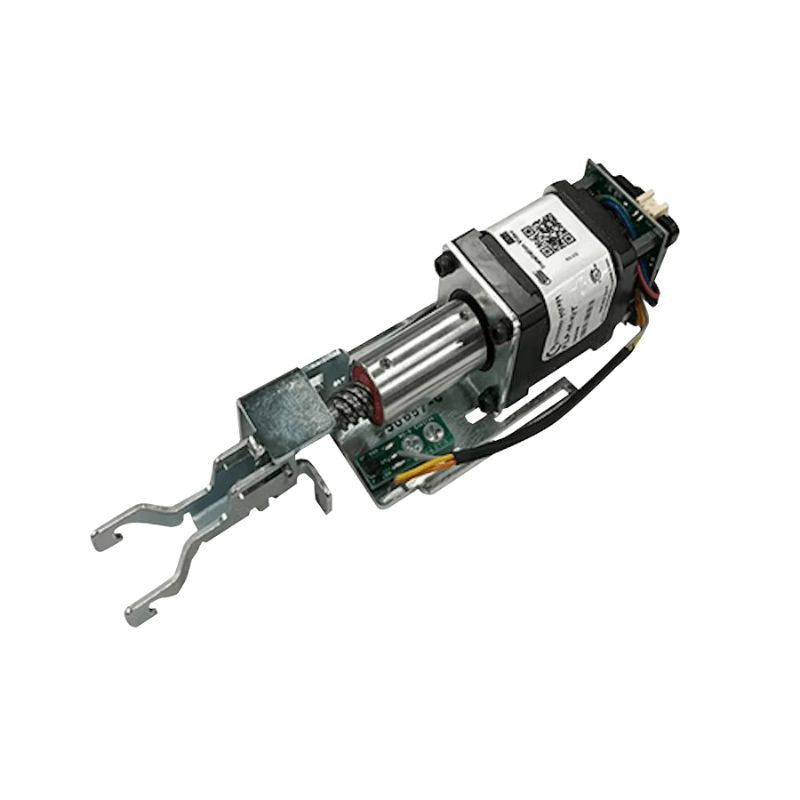

Command Access Technologies MLRK1-FAL25-REX Motorized Latch Retraction Kit For Falcon 24/25 Series Exit Device

Product Description

The Command Access Technologies MLRK1-FAL25-REX provides a solution to electrify mechanical Falcon 24 and 25 series exit devices. This kit is designed for easy installation without the need for drilling or screws. It includes PTS technology for post-installation adjustments and a built-in Request to Exit (REX) switch. The enhanced MM4S module allows for two energy consumption settings.

• Easy installation with no drilling required.
• PTS technology for adjustments after installation.
• MM4S module with diagnostics for power issues.

Product Highlights

This motorized latch retraction kit makes it simple to upgrade Falcon exit devices to electric operation.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• Installation: Commercial

Technical Specifications

• MPN: MLRK1-FAL25
• Limited Warranty: 3 Years
• Application: Falcon 24/25 Series Exit Device
• Operating Voltage: 24 VDC
• Wireless: No
• Voltage Range: 24 to 28 VDC
• System Protection: Shutdown when voltage exceeds 28 VDC
• Average Current Peak: 900MA
• Average Current Hold: 215MA
• Request to Exit (REX): Built-in to all Units
