Command Access Technologies ETH4WH4545-626CH-BB79 Energy Transfer Hinge 4-Wire 48 Lead

Product Description

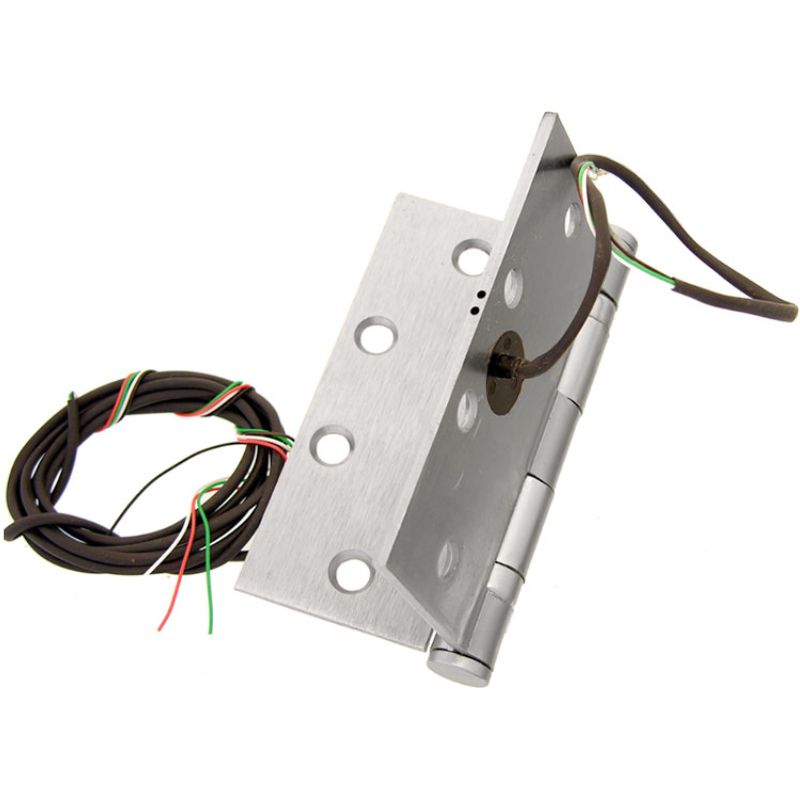

The Command Access Technologies ETH4WH4545-626CH-BB79 Energy Transfer Hinge is designed for efficient low-voltage power transfer. This product features a four-wire design that includes two eighteen-gauge wires and two twenty-six-gauge wires, with a lead length of forty-eight inches. It is a five-knuckle standard weight hinge sized at four and one-half inches by four and one-half inches.

• Four-wire design for low-voltage applications
• Prevents visible wires for a clean look
• Made from durable steel for commercial use

Product Highlights

This energy transfer hinge is ideal for electric locksets and provides a neat solution for power transfer without exposing the wiring system.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH6WH4545 CH-BB79

Technical Specifications

• Hinge Type: Hinge, Full Mortise
• Knuckles: 5
• Bearing Type: Plain Bearing
• Pin Type: Non-Removable
• Tip Style: Standard
• Weight: 2 lbs
• Height: 4.5 inches
• Width: 4.5 inches
• Package Qty: 1
• Power Transfer: 2-18GA and 2-26GA
• Alternate Part Number-1: 154512
